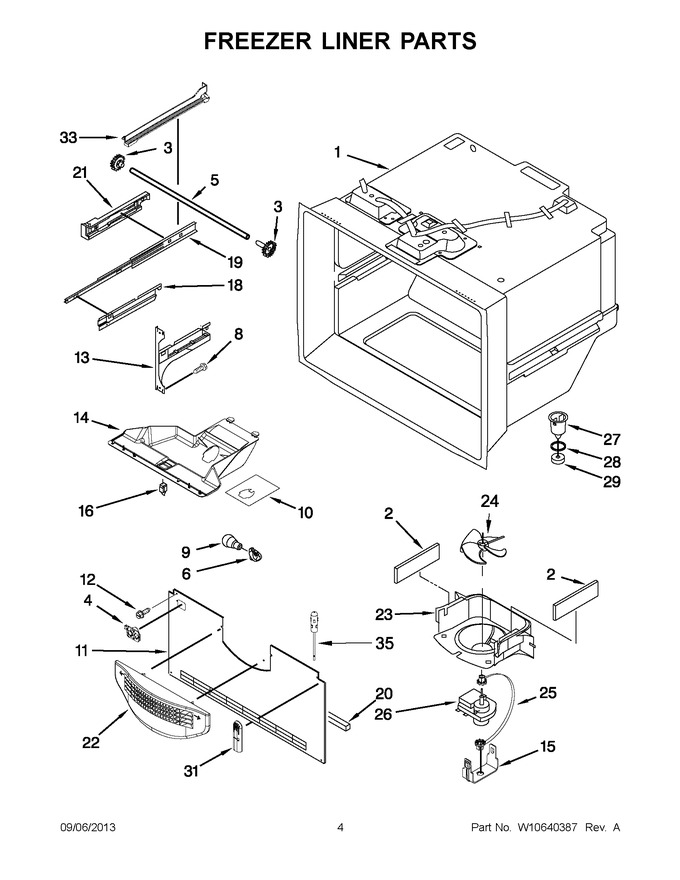

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W10856123 | Gasket, Foam (Replaces: A3189392) |
|
Immediately | $ 7.25 | ||||
| 3 | 12002497 | Gear |
|
Immediately | $ 20.26 | ||||
| 4 | W11448709 | Guide, Fill Tube (Replaces: 12932103) |
|
$ 23.28 | |||||
| 5 | W11715937 | Shaft, Rack (Replaces: 12812902WD) |
|
$ 61.82 | |||||
| 6 | W11447232 | Socket, Light (Replaces: 12570701V) |
|
Immediately | $ 12.48 | ||||
| 8 | WP98165 | Screw (Replaces: 12990521) |
|
$ 7.71 | |||||
| 9 | 4396822 | Bulb, Light (Replaces: W10311527) |
|
Immediately | $ 12.22 | ||||
| 10 | W11469652 | Housing, Foil (Replaces: W10277466) |
|
$ 20.96 | |||||
| 11 | W10308415 | Cover, Evaporator |
|
$ 269.76 | |||||
| 12 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 13 | WPW10330993 | Bracket, Door (right Hand) (Replaces: W10330993) |
|
$ 149.48 | |||||
| 13 | WPW10330991 | Bracket, Door (left Hand) (Replaces: W10330991) |
|
$ 147.88 | |||||
| 14 | WPW10277025 | Module, Light (Replaces: W10277025) |
|
$ 120.96 | |||||
| 15 | 13058002 | Clip, Evaporator Motor |
|
$ 12.66 | |||||
| 16 | W11396033 | Switch, Light (Replaces: 12466105) |
|
Immediately | $ 33.57 | ||||
| 18 | WPW10280608 | Cradle-basket (left Hand) (Replaces: W10280608) |
|
$ 82.94 | |||||
| 18 | WPW10280613 | Cradle-basket (right Hand) (Replaces: W10280613) |
|
$ 82.94 | |||||
| 19 | W11658402 | Slide, Door (Replaces: W10120018) |
|
Immediately | $ 202.03 | ||||
| 20 | W11451451 | Gasket, Foam (Replaces: A3189397) |
|
$ 11.73 | |||||
| 21 | WPW10284685 | Adapter, Slide (right Hand) (Replaces: W10284685) |
|
$ 37.94 | |||||
| 21 | WPW10284684 | Adapter, Slide (left Hand) (Replaces: W10284684) |
|
Immediately | $ 37.68 | ||||
| 22 | WPW10175909 | Grille, Freezer Air (Replaces: 13024803) |
|
Immediately | $ 77.15 | ||||
| 23 | WPW10167023 | Shroud, Evaporator (Replaces: 13057901) |
|
Immediately | $ 94.12 | ||||
| 24 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 39.07 | ||||
| 25 | W10121318 | Grommet |
|
$ 45.72 | |||||
| 26 | WPW10128551 | Motor, Evaporator (Replaces: W10128551) |
|
Immediately | $ 70.88 | ||||
| 27 | W10585187 | Funnel, Drain |
|
$ 47.69 | |||||
| 28 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 10.32 | |||||
| 29 | WPB8381501 | Gasket, Drain (Replaces: B8381501) |
|
$ 7.00 | |||||
| 31 | WP67003924 | Cover, Thermistor (Replaces: 12815301) |
|
$ 7.39 | |||||
| 33 | W11489994 | Rail-side (right Hand) (Replaces: W10516602) |
|
Immediately | $ 21.11 | ||||
| 33 | W11489993 | Rail-side (left Hand) (Replaces: W10516603) |
|
Immediately | $ 21.11 | ||||
| 35 | 12002355 | Thermistor (Replaces: 12791409SP) |
|
Immediately | $ 44.10 |
