Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2316031B Refrigerator Door (includes Item 9 & Molded Door Handle) (black) Appelez-nous -
1 W10251797 Refrigerator Door (includes Item 9 & Molded Door Handle) (stainless Steel) Appelez-nous -
1 2316366W Refrigerator Door (includes Item 9 & Molded Door Handle) (white) Appelez-nous -
2 W11129820 Trim, Door   (Replaces: W10234242) In-Stock Immediately $ 114.61

3 W11178521 Nameplate (grey)   (Replaces: W10481433) In-Stock Immediately $ 58.63

3 W11178521 Nameplate (white)   (Replaces: W10481434) In-Stock Immediately $ 58.63

4 WP2266727 Trim, Door   (Replaces: 2266727) In-Stock Immediately $ 108.51

5 W10276642 Screw   (Replaces: 8533904) Special Order $ 5.77

6 W11745278 Bracket, Door Stop   (Replaces: 2189202) In-Stock Immediately $ 12.03

7 WP2212651 Hole Plug (black)   (Replaces: 2212651) In-Stock Immediately $ 21.79

7 WP2212648 Hole Plug (white)   (Replaces: 2212648) In-Stock Immediately $ 7.37

8 WP2207942 Door, Compartment   (Replaces: 2207942) In-Stock Immediately $ 65.89

9 2319266B Door Gasket, Magnetic (black)   (Replaces: 2264725) Special Order $ 338.86

9 WP2319266T Door Gasket, Magnetic Beige   (Replaces: W10190034) Special Order $ 154.44

10 WP2266738 Trim, Door   (Replaces: 2266738) Special Order $ 105.55

11 WP2195916K Endcap, Door Trim   (Replaces: 2195916) In-Stock Immediately $ 11.86

12 WP2156003 End Cap, Door Trim   (Replaces: 2156003) In-Stock Immediately $ 11.93

13 2265678B Freezer Door (includes Item 14 & Molded Door Handle) (black) Appelez-nous -
13 2263251W Freezer Door (includes Item 14 & Molded Door Handle) (white) Appelez-nous -
13 W10209802 Freezer Door (includes Item 14 & Molded Door Handle) (stainless Steel) Appelez-nous -
14 WP2319263B Door Gasket, Magnetic (black)   (Replaces: 2264722) Special Order $ 241.45

14 WP2319263T Door Gasket, Magnetic (beige)   (Replaces: W10190031) In-Stock Immediately $ 194.27

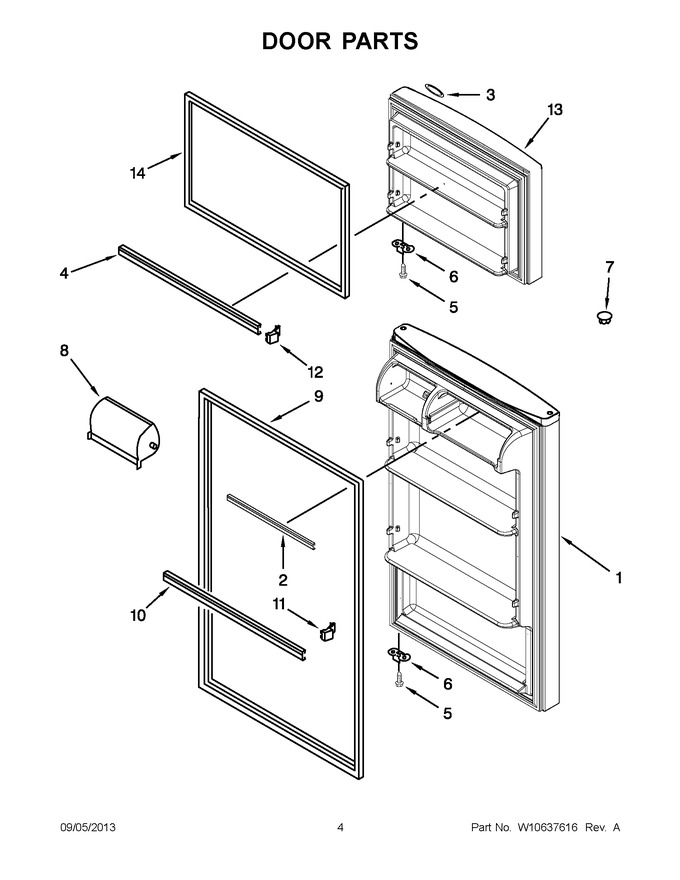

    View Diagram in Separate Window     Print Icon   Print Part List
