SELECT A DIAGRAM

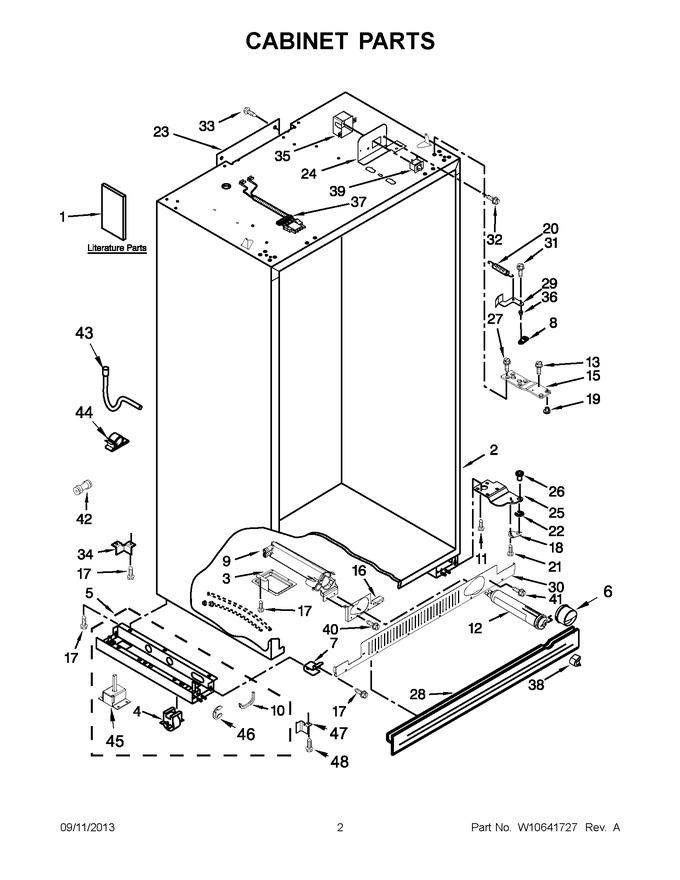

01 - Cover Sheet


02 - Cabinet Parts


03 - Cabinet Trim Parts


04 - Freezer Shelf Parts


05 - Refrigerator Liner Parts


06 - Refrigerator Shelf Parts


07 - Top Grille And Unit Cover Parts


08 - Freezer Liner And Air Flow Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Dispenser Front Parts


12 - Upper Unit Parts


13 - Lower Unit And Tube Parts


14 - Icemaker Parts


15 - Motor And Ice Container Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10469184		Main Control Service Sheet		Appelez-nous	-
1	W10303988		Use & Care Guide		Appelez-nous	-
1	W10482116		Energy Guide		Appelez-nous	-
1	W10483315		Service & Wiring Sheet		Appelez-nous	-
1	2306424		Icemaker And Ingredient Care Center Service Sheet		Appelez-nous	-
1	W10555565		Installation Instructions		Appelez-nous	-
2	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
3	2318189		Tray, Filter Drip				$ 133.86
4	WPW10138054		Assembly, Roller   (Replaces: W10138054)				$ 40.81
5	W10860448		Support, Leveler Assembly (right Hand)   (Replaces: W10138423)			Immediately	$ 344.70
5	W10860229		Support, Leveler Assembly (left Hand)   (Replaces: W10279275)				$ 343.65
6	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260518B)			Immediately	$ 30.56
7	W10839844		Mounting Bracket, Grill   (Replaces: 2307640)				$ 38.93
8	WP2320509		Stop, Door   (Replaces: 2320509)				$ 26.96
9	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 243.77
10	2307584		Grommet, Crossover Tube				$ 21.06
11	3400525		Screw				$ 12.83
12	EDR3RXD1B		Filter, Water   (Replaces: W10121146)			Immediately	$ 49.99
13	WP8281164		Screw (stainless)   (Replaces: 8281164)				$ 10.20
15	2257644		Hinge, Top				$ 160.18
16	W11755873		Bracket, Filter   (Replaces: W10348782)				$ 72.30
17	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.54
18	WP2004994		Lock, Bushing   (Replaces: 2004994)			Immediately	$ 7.55
19	W11500952		Bushing, Top Hinge   (Replaces: W10484913)			Immediately	$ 31.27
20	W11805224		Spring, Door Closure (green)   (Replaces: 2221242)		Appelez-nous	-
21	W11769878		Screw   (Replaces: 3400230)				$ 11.49
22	WP489236		Retaining Ring, Adjustable Bushing   (Replaces: 2005008)			Immediately	$ 11.50
23	2215612		Cover, Air Duct		Appelez-nous	-
24	W10741111		Bracket, Switch (right Hand)   (Replaces: 2221097)				$ 60.63
24	2221096		Bracket, Switch (left Hand)				$ 88.07
25	WP2006780		Hinge, Bottom (right Hand)   (Replaces: 2006780)				$ 269.40
25	W10527053		Hinge, Bottom (left Hand)   (Replaces: 2006779)				$ 123.96
26	WP2302876		Bushing, Adjustable   (Replaces: 2302876)			Immediately	$ 81.65
27	W11721628		Screw   (Replaces: 8533913)			Immediately	$ 13.30
28	2209025B		Skirt-grille, Bottom (black)				$ 48.90
29	W10847927		Extension Arm, Door Closer (right Hand)   (Replaces: 2266882)				$ 89.92
29	W11298172		Extension Arm, Door Closer (left Hand)   (Replaces: 2266881)			Immediately	$ 78.69
30	2325185B		Grille Bottom, Front (black)				$ 78.44
31	W11177574		Screw   (Replaces: W10485630)				$ 13.36
32	WP965173		Screw   (Replaces: 487415)			Immediately	$ 10.68
33	WP488729		Screw (stainless)   (Replaces: 487539)			Immediately	$ 7.45
34	2006617		Bracket, Base Support		Appelez-nous	-
35	2215938		Cover, Switch				$ 85.30
36	WP2316859		Bushing, Extension Arm   (Replaces: 2316859)			Immediately	$ 48.78
37	W10167456		Assembly, Rc Wire		Appelez-nous	-
38	WP2260503B		Button, Filter (black)   (Replaces: 2260503B)				$ 68.78
39	W11384469		Switch, Rocker Arm (refrigerator)   (Replaces: 1118894)			Immediately	$ 35.18
39	W11457217		Switch, Rocker Arm, Combination(freezer)   (Replaces: 1115373)				$ 36.08
40	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 9.63
41	WP489464		Screw   (Replaces: W10005050)			Immediately	$ 7.54
42	WP2300868		Connector, Union   (Replaces: W10271541)			Immediately	$ 33.29
43	2314064		Tube, Drain				$ 84.49
44	2004514		Clip		Appelez-nous	-
45	2005032		Leveler, Adjustable			Immediately	$ 180.06
46	2006841		Ring, Retainer				$ 83.39
47	2006616		Bracket, Support Base (front) (left Hand)				$ 82.38
47	2006556		Bracket, Support Base (front) (right Hand)				$ 33.48
48	WPW10141604		Screw   (Replaces: W10141604)				$ 7.97
