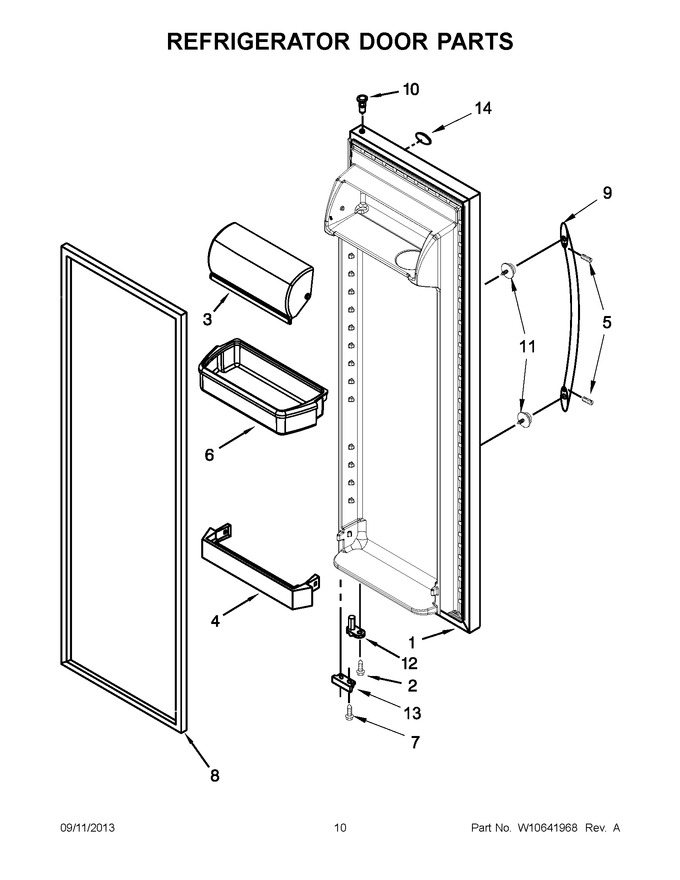

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10407713		Refrigerator Door (includes Item No.8) (white)		Appelez-nous	-
1	LW10573453		Refrigerator Door (includes Item No.8) (sparkle Steel)   (Replaces: W10573453)		Appelez-nous	-
2	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
3	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 80.48
4	WP2309941		Trivet   (Replaces: 2309941)			Immediately	$ 68.69
5	W11366418		Set Screw (silver)   (Replaces: W10010140)			Immediately	$ 16.59
6	WPW10321304		Bin, Door   (Replaces: W10549739)			Immediately	$ 40.46
7	WP489483		Screw   (Replaces: 489420)				$ 10.27
8	WPW10136734		Door Gasket, Magnetic (service) (grey)   (Replaces: 2327163)				$ 301.85
8	2159075		Door Gasket, Magnetic (service) (beige)   (Replaces: 2309528)			Immediately	$ 299.70
9	WPW10670421		Handle (stainless)   (Replaces: W10274730)				$ 228.74
9	WPW10268056		Handle (white)   (Replaces: W10268056)				$ 156.70
10	WP2182181		Thimble   (Replaces: 2182181)				$ 7.34
11	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 11.59
12	WP2182179		Door Closer, Upper Cam (thimble, Cam)   (Replaces: 2182178)			Immediately	$ 6.48
13	W10219801		Bracket, Door Stop (silver)				$ 5.27
14	WPW10511972		Nameplate (grey)   (Replaces: W10511972)				$ 71.60
14	WPW10511975		Nameplate (white)   (Replaces: W10511975)				$ 72.76
