| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W10303989 |
|
Use And Care Guide |
|
Appelez-nous
|
- |
|
|
|
| 2 |
N/P |
|
Cabinet (not A Serviceable Part) |
|
Appelez-nous
|
- |
|
|
|
| 3 |
WP2260503B |
 |
Button, Water Filter (black) (Replaces: 2260503B) |
|
|
|
$ 68.78 |
|
|
| 4 |
WPW10138054 |
 |
Assembly, Roller (Replaces: W10138054) |
|
|
|
$ 40.81 |
|
|
| 5 |
W10860229 |
 |
Assembly, Support Base (left Hand) (Replaces: W10279275) |
|
|
|
$ 343.65 |
|
|
| 6 |
W11238395 |
 |
Cap, Water Filter (black) (Replaces: W10797527) |
|
|
Immediately |
$ 45.61 |
|
|
| 7 |
W10839844 |
|
Bracket, Grill Mounting (Replaces: 2307640) |
|
|
|
$ 38.93 |
|
|
| 8 |
2307584 |
|
Grommet, Crossover Tube |
|
|
|
$ 21.06 |
|
|
| 9 |
WP2320509 |
|
Stop, Door (Replaces: 2320509) |
|
|
|
$ 26.96 |
|
|
| 10 |
WPW10121140 |
 |
Housing, Water Filter (Replaces: W10121140) |
|
|
Immediately |
$ 243.77 |
|
|
| 11 |
2318189 |
|
Tray, Filter Drip |
|
|
|
$ 133.86 |
|
|
| 12 |
3400525 |
|
Screw |
|
|
|
$ 12.83 |
|
|
| 13 |
EDR3RXD1B |
 |
Filter, Water (Replaces: W10121146) |
|
|
Immediately |
$ 49.99 |
|
|
| 14 |
WP489399 |
 |
Screw (Replaces: 489399) |
|
|
|
$ 6.57 |
|
|
| 15 |
W11769878 |
|
Screw (Replaces: 3400230) |
|
|
|
$ 11.49 |
|
|
| 16 |
2257644 |
 |
Hinge, Top |
|
|
|
$ 160.18 |
|
|
| 17 |
W11755873 |
|
Bracket, Filter (Replaces: W10674648) |
|
|
|
$ 72.30 |
|
|
| 18 |
WP489464 |
 |
Screw (Replaces: W10001250) |
|
|
Immediately |
$ 7.54 |
|
|
| 19 |
WP2004994 |
 |
Lock, Bushing (Replaces: 2004994) |
|
|
Immediately |
$ 7.55 |
|
|
| 20 |
W11500952 |
|
Bushing, Top Hinge (Replaces: W10484913) |
|
|
Immediately |
$ 31.27 |
|
|
| 21 |
W10663352 |
|
Clip |
|
|
|
$ 19.72 |
|
|
| 22 |
W11805224 |
|
Spring, Door Closure (green) (Replaces: 2221242) |
|
Appelez-nous
|
- |
|
|
|
| 23 |
W11624204 |
|
Screw (Replaces: 486194) |
|
|
|
$ 13.25 |
|
|
| 24 |
WP489236 |
 |
Ring, Bushing Retaining (Replaces: 2005008) |
|
|
Immediately |
$ 11.50 |
|
|
| 25 |
WPW10121046 |
 |
Assembly, Cam (left Hand) (Replaces: W10121046) |
|
|
Immediately |
$ 75.34 |
|
|
| 26 |
W11700297 |
|
Cover, Bottom Gap (Replaces: W10482554) |
|
|
Immediately |
$ 34.45 |
|
|
| 27 |
W10527053 |
 |
Hinge (bottom) (left Hand) (Replaces: 2006779) |
|
|
|
$ 123.96 |
|
|
| 28 |
WP2302876 |
 |
Bushing, Adjustable (Replaces: 2302876) |
|
|
Immediately |
$ 81.65 |
|
|
| 29 |
W11721628 |
|
Screw (Replaces: 8533913) |
|
|
Immediately |
$ 13.30 |
|
|
| 30 |
2209026B |
|
Skirt, Bottom Grille (black) |
|
|
|
$ 76.14 |
|
|
| 31 |
W11298172 |
 |
Arm, Door Closer Extension (left Hand) (Replaces: W10709785) |
|
|
Immediately |
$ 78.69 |
|
|
| 32 |
2325186B |
|
Grille, Bottom (black) |
|
|
|
$ 84.63 |
|
|
| 33 |
W11177574 |
|
Screw (Replaces: W10485630) |
|
|
|
$ 13.36 |
|
|
| 34 |
2006616 |
 |
Bracket, Support Base (front) (left Hand) |
|
|
|
$ 82.38 |
|
|
| 35 |
WP489069 |
 |
Screw (Replaces: 1157158) |
|
|
Immediately |
$ 7.56 |
|
|
| 36 |
2006617 |
|
Bracket, Base Support (rear) |
|
Appelez-nous
|
- |
|
|
|
| 37 |
WP2006346 |
 |
Washer, Extension Arm (Replaces: 2006346) |
|
|
Immediately |
$ 10.58 |
|
|
| 38 |
WP2316859 |
 |
Bushing, Extension Arm (Replaces: 2316859) |
|
|
Immediately |
$ 48.78 |
|
|
| 39 |
W10780213 |
|
Assembly, Switch Wire |
|
|
|
$ 117.82 |
|
|
| 40 |
WP2300868 |
 |
Connector, Union (Replaces: W10271541) |
|
|
Immediately |
$ 33.29 |
|
|
| 41 |
WP8281163 |
 |
Screw (stainless) (Replaces: 8281163) |
|
|
Immediately |
$ 9.63 |
|
|
| 42 |
W11384469 |
 |
Switch, Rocker Arm (Replaces: 1118894) |
|
|
Immediately |
$ 35.18 |
|
|
| 43 |
2215938 |
|
Cover, Switch |
|
|
|
$ 85.30 |
|
|
| 44 |
WP965173 |
|
Screw (Replaces: 487415) |
|
|
Immediately |
$ 10.68 |
|
|
| 45 |
W10741112 |
|
Bracket, Switch (left Hand) |
|
|
|
$ 60.63 |
|
|
| 46 |
2215612 |
|
Cover, Air Duct |
|
Appelez-nous
|
- |
|
|
|
| 47 |
2005032 |
|
Leveler, Adjustable |
|
|
Immediately |
$ 180.06 |
|
|
| 48 |
2006841 |
|
Ring, Retainer |
|
|
|
$ 83.39 |
|
|
| 1A |
W10205644 |
|
Energy Guide |
|
Appelez-nous
|
- |
|
|
|
| 1B |
W10483315 |
|
Service And Wiring Sheet |
|
Appelez-nous
|
- |
|
|
|
| 1C |
2306424 |
|
Icemaker And Ingredient Care Center Service Sheet |
|
Appelez-nous
|
- |
|
|
|
| 1D |
W10469184 |
|
Main Control Service Sheet |
|
Appelez-nous
|
- |
|
|
|
| 1E |
W10555563 |
|
Installation Instructions |
|
Appelez-nous
|
- |
|
|
|
| 25A |
WP2307857 |
 |
Assembly, Cam (right Hand) (Replaces: 2307857) |
|
|
Immediately |
$ 71.37 |
|
|
| 27A |
WP2006780 |
 |
Hinge (bottom) (right Hand) (Replaces: 2006780) |
|
|
|
$ 269.40 |
|
|
| 31A |
W10847927 |
 |
Arm, Door Closer Extension (right Hand) (Replaces: W10728112) |
|
|
|
$ 89.92 |
|
|
| 34A |
2006556 |
|
Bracket, Support Base (front) (right Hand) |
|
|
|
$ 33.48 |
|
|
| 42A |
W11457217 |
 |
Switch, Rocker Arm Combination (freezer) (Replaces: 1115373) |
|
|
|
$ 36.08 |
|
|
| 45A |
W10741111 |
|
Bracket, Switch (right Hand) |
|
|
|
$ 60.63 |
|
|
| 5A |
W10860448 |
 |
Assembly, Support Base (right Hand) (Replaces: W10138423) |
|
|
Immediately |
$ 344.70 |
|
|

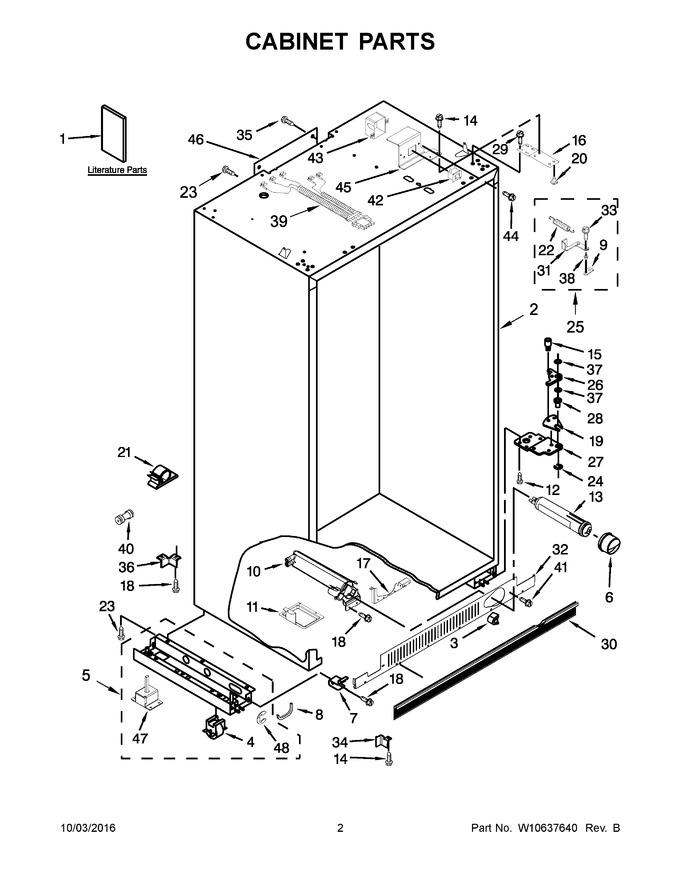

View Diagram in Separate Window
Print Part List
