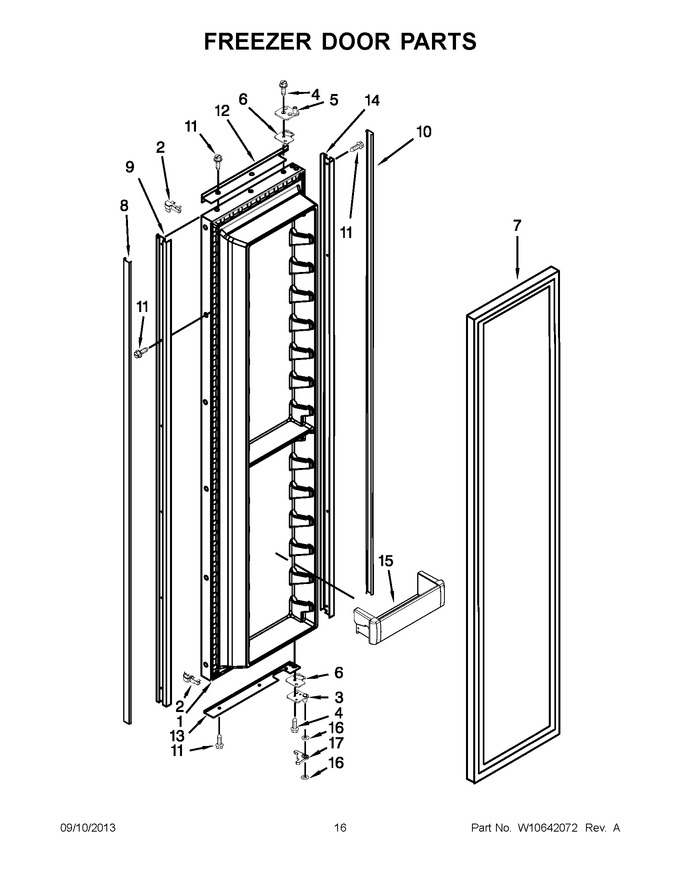

09 - Freezer Door Parts


10 - Top Grille And Unit Cover Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Ice Maker Parts


14 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193487		Freezer Door Assembly		Appelez-nous	-
2	2207457		Trim, Corner				$ 51.41
3	2252294		Hinge, Bottom		Appelez-nous	-
4	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 7.77
5	W10484480		Hinge Assembly, Top				$ 57.64
6	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 117.33
7	WP2266901		Gasket, Door   (Replaces: 2222810)				$ 332.86
8	2314003S		Cover, Trim (handle Side) (aluminum)				$ 157.17
9	2309497S		Trim, Door (handle Side) (aluminum)				$ 290.72
10	2259448S		Trim, Cover (hinge Side) (aluminum)				$ 161.55
11	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 10.28
12	2309490S		Trim, Top Door (aluminum)				$ 224.00
13	2309496S		Trim, Bottom Door (aluminum)				$ 220.94
14	2309498S		Trim, Door (hinge Side) (aluminum)				$ 291.94
15	W11590561		Bin, Shallow   (Replaces: W10323603)				$ 84.81
16	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 10.58
17	W11700297		Cover, Bottom Gap   (Replaces: W10482554)			Immediately	$ 34.45
