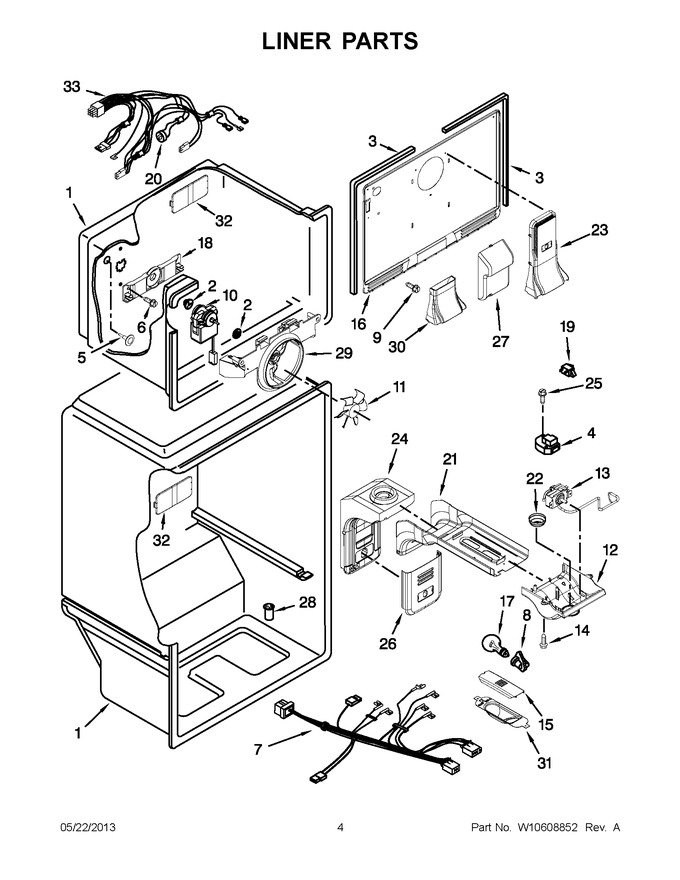

01 - Cabinet Parts
02 - Liner Parts
03 - Shelf Parts
04 - Door Parts
05 - Unit Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Serviced) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 41.55 | ||||
| 3 | W10849448 | Gasket, Evaporator Cover (Replaces: W10468762) |
|
Immediately | $ 86.12 | ||||
| 4 | WP2321259 | Timer, Defrost (Replaces: 2321259) |
|
$ 147.38 | |||||
| 5 | WP941839 | Hole Plug (Replaces: 941839) |
|
$ 7.23 | |||||
| 6 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 7 | W10403661 | Wire Assembly, Control Box |
|
- | |||||
| 8 | W11447232 | Socket, Light (Replaces: W10134764) |
|
Immediately | $ 12.48 | ||||
| 9 | WPW10142283 | Screw (white) (Replaces: W10142283) |
|
$ 9.30 | |||||
| 10 | WPW10173141 | Fan Motor (Replaces: W10173141) |
|
$ 286.88 | |||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 96.85 | ||||
| 12 | W10440730 | Control Box |
|
- | |||||
| 13 | WPW10584888 | Thermostat Assembly (Replaces: W10343913) |
|
Immediately | $ 233.92 | ||||
| 14 | WP489174 | Screw (Replaces: 489174) |
|
$ 6.57 | |||||
| 15 | WPW10348614 | Cover, Light (Replaces: W10348614) |
|
$ 106.16 | |||||
| 16 | W10385128 | Cover-evaporator |
|
$ 82.68 | |||||
| 17 | WP67002552 | Bulb, Light (Replaces: 851682) |
|
Immediately | $ 11.11 | ||||
| 18 | 2254454 | Bracket Evaporator Fan, Rear |
|
Immediately | $ 67.90 | ||||
| 19 | W11384469 | Switch, Rocker Arm (ref) (Replaces: 1118894) |
|
Immediately | $ 35.18 | ||||
| 20 | WPW10392132 | Defrost, Bi-metal (Replaces: W10392132) |
|
Immediately | $ 8.15 | ||||
| 21 | WPW10305175 | Air Diffuser Cover (Replaces: W10305175) |
|
$ 102.92 | |||||
| 22 | W10356940 | Knob |
|
- | |||||
| 23 | W10305174 | Air Tower, Fc |
|
$ 43.06 | |||||
| 24 | W10376137 | Air Diffuser Assembly |
|
- | |||||
| 25 | WPW10109200 | Screw (Replaces: 97787) |
|
Immediately | $ 7.92 | ||||
| 26 | W10310927 | Air Diffuser Cup |
|
- | |||||
| 27 | WPW10339203 | Water Tube Cover (Replaces: W10339203) |
|
$ 6.80 | |||||
| 28 | WP2210509 | Valve, Release (Replaces: 2210509) |
|
$ 89.24 | |||||
| 29 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 29.22 | ||||
| 30 | W10396926 | Assembly, Tower Connection |
|
$ 39.05 | |||||
| 31 | W10300161 | Shield, Light |
|
Immediately | $ 86.96 | ||||
| 32 | W10336009 | Screw Cup |
|
$ 69.66 | |||||
| 33 | W10495656 | Evap Fan Wire Assembly |
|
- |
