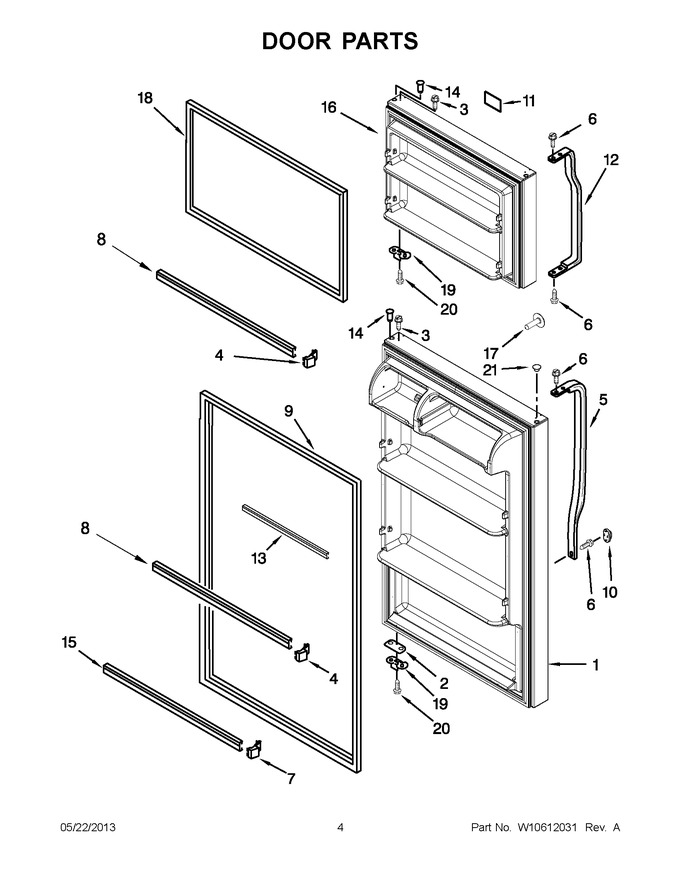

02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2263256B | Refrigerator Door (includes Items 9 & 14) (black) |
|
- | |||||
| 1 | 2263256W | Refrigerator Door (includes Items 9 & 14) (white) |
|
- | |||||
| 2 | 2258681B | Shim, Door Stop (black) |
|
$ 40.80 | |||||
| 2 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 6.80 | ||||
| 3 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.53 | |||||
| 4 | WP2156003 | End Cap, Door Trim (Replaces: 2156003) |
|
Immediately | $ 11.93 | ||||
| 5 | WP2221946W | Handle, Refrigerator (white) (Replaces: 2221946W) |
|
Immediately | $ 117.10 | ||||
| 5 | WP2326169B | Handle, Refrigerator (black) (Replaces: 2326169B) |
|
$ 139.28 | |||||
| 6 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 6.80 | ||||
| 7 | WP2195916K | End Cap, Door Trim (Replaces: 2195916) |
|
Immediately | $ 11.86 | ||||
| 8 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 108.51 | ||||
| 9 | WP2319264B | Door Gasket, Magnetic (black) (Replaces: 2264723) |
|
$ 291.47 | |||||
| 9 | WP2319264T | Door Gasket, Magnetic (beige) (Replaces: W10190032) |
|
Immediately | $ 193.96 | ||||
| 10 | WP2202819B | Screw Cover (black) (Replaces: 2202819B) |
|
$ 10.29 | |||||
| 10 | WP2202819W | Screw Cover (white) (Replaces: 2202819W) |
|
Immediately | $ 7.33 | ||||
| 11 | 2325418 | Nameplate (silver) |
|
$ 44.68 | |||||
| 12 | WP2202098 | Handle, Freezer (white) (Replaces: 2202098) |
|
$ 141.14 | |||||
| 12 | 2202098B | Handle, Freezer (black) |
|
$ 136.11 | |||||
| 13 | W11129820 | Trim, Door (Replaces: W10234242) |
|
Immediately | $ 114.61 | ||||
| 14 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 7.33 | |||||
| 15 | WP2266738 | Trim, Door (Replaces: 2266738) |
|
$ 100.52 | |||||
| 16 | 2263254B | Freezer Door (includes Items 14 & 18) (black) |
|
- | |||||
| 16 | 2263254W | Freezer Door (includes Items 14 & 18) (white) |
|
- | |||||
| 17 | WP2189009 | Hole Plug (black) (Replaces: 2189009) |
|
$ 6.85 | |||||
| 17 | WP2189000 | Hole Plug (white) (Replaces: 2189000) |
|
Immediately | $ 6.99 | ||||
| 18 | WP2319263T | Door Gasket, Magnetic (beige) (Replaces: W10190031) |
|
Immediately | $ 194.27 | ||||
| 18 | WP2319263B | Door Gasket, Magnetic (black) (Replaces: 2264722) |
|
$ 241.45 | |||||
| 19 | W11745278 | Bracket, Door Stop (silver) (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 20 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 21 | WP2212651 | Plug, Hinge (black) (Replaces: 2212651) |
|
$ 21.79 | |||||
| 21 | WP2212648 | Plug, Hinge (white) (Replaces: 2212648) |
|
Immediately | $ 7.37 |
