View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

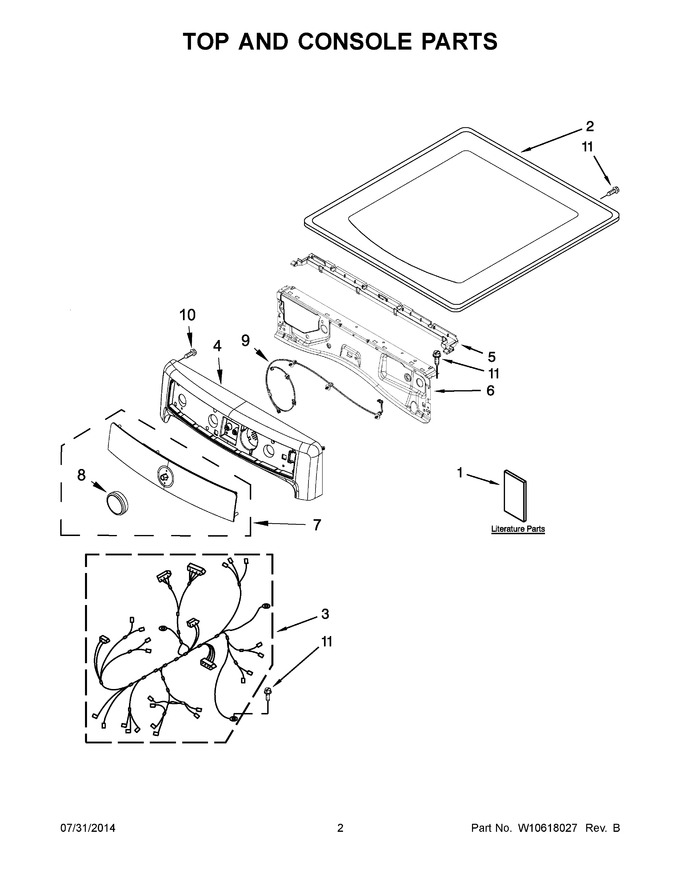

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - 8576353 Burner Assembly Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10494218 | Use & Care Guide |
|
- | |||||
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 291.54 | |||||
| 3 | W10526661 | Harness, Main Wiring |
|
- | |||||
| 4 | WPW10391555 | Console Assembly (white) (Replaces: W10391555) |
|
$ 351.18 | |||||
| 5 | WPW10653575 | Water Channel (Replaces: W10636058) |
|
$ 81.85 | |||||
| 6 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 73.09 | |||||
| 7 | W10469306 | Bracket, Console (white) |
|
$ 463.08 | |||||
| 8 | W10853910 | Assembly, Control Knob (silver) (Replaces: W10519048) |
|
$ 48.55 | |||||
| 9 | W10837344 | Cable, User Interface (Replaces: W10540653) |
|
$ 30.25 | |||||
| 10 | W10489172 | Screw |
|
$ 10.78 | |||||
| 11 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 1A | W10484433 | Tech Sheet |
|
- | |||||
| 1B | W10504395 | Wiring Diagram |
|
- | |||||
| 1C | W10573707 | Installation Instructions |
|
- | |||||
| 2A | W10301057 | Top (cosmetallic) |
|
$ 139.14 | |||||
| 4A | W10465389 | Console Assembly (granite) |
|
$ 159.68 | |||||
| 7A | W10469307 | Assembly, Iml (granite) |
|
$ 460.79 |
