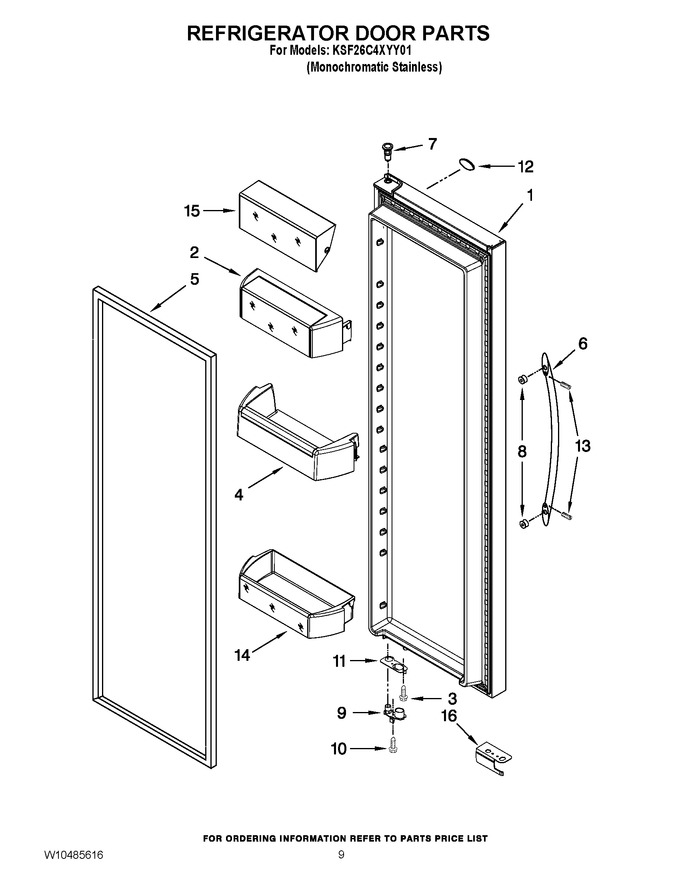

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10365619 | Refrigerator Door (includes Item 5) (mono Stainless) |
|
- | |||||
| 2 | WPW10324760 | Door Compartment Assembly (Replaces: W10316889) |
|
$ 77.04 | |||||
| 3 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 7.25 | |||||
| 4 | W10335222 | Door Bin, Shallow |
|
$ 35.51 | |||||
| 5 | W10355582 | Door Gasket, Magnetic (Replaces: W10249916) |
|
Immediately | $ 307.13 | ||||
| 6 | WPW10314517K | Handle (Replaces: W10314517) |
|
$ 219.03 | |||||
| 7 | WP2182181 | Thimble-top (Replaces: 2200087) |
|
$ 7.34 | |||||
| 8 | WPW10170540 | Stud, Handle (Replaces: W10170540) |
|
Immediately | $ 8.69 | ||||
| 9 | WPW10257203 | Door Closer, Upper Cam (Replaces: W10257203) |
|
$ 11.66 | |||||
| 10 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 10.25 | |||||
| 11 | W11037957 | Bracket, Door Stop (Replaces: W10367462) |
|
$ 72.22 | |||||
| 12 | WPW10243391 | Nameplate (Replaces: W10243391) |
|
$ 52.48 | |||||
| 13 | W11366418 | Set Screw (Replaces: W10010140) |
|
Immediately | $ 16.59 | ||||
| 14 | WPW10335220 | Door Bin, Gallon (Replaces: W10335220) |
|
$ 84.23 | |||||
| 15 | WPW10316885 | Door, Compartment (Replaces: W10316885) |
|
$ 67.88 | |||||
| 16 | W11661847 | Cover, Door Stop (Replaces: W10257218) |
|
Immediately | $ 28.54 |
