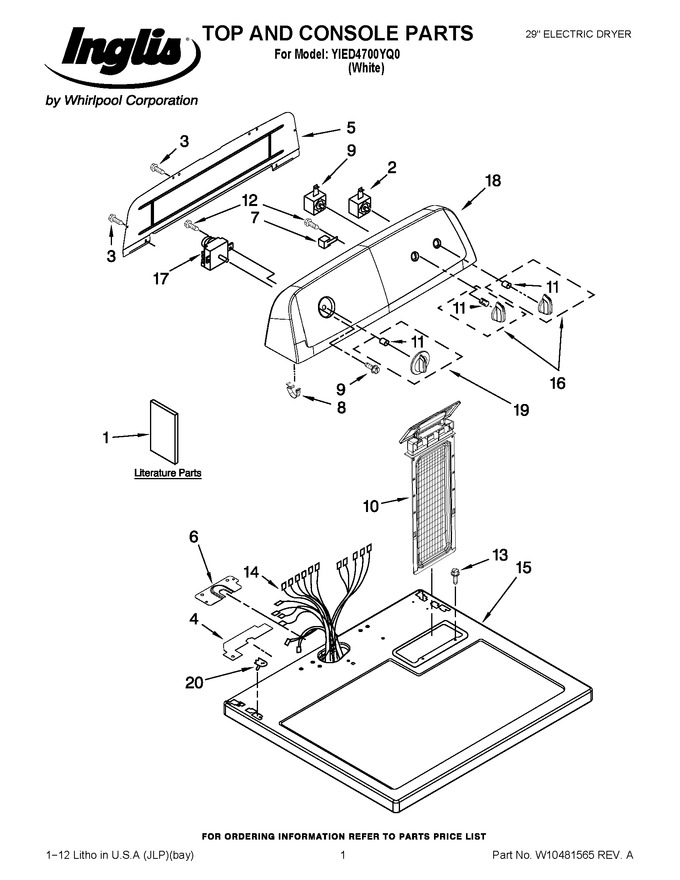

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10096991 | Guide, Use & Care |
|
- | |||||
| 1 | W10115228 | Installation, Instruction |
|
- | |||||
| 1 | W10185986 | Wiring Diagram |
|
- | |||||
| 2 | WPW10446920 | Switch, Push To Start (Replaces: W10446920) |
|
Immediately | $ 79.30 | ||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 4 | W10112603 | Seal, Harness |
|
- | |||||
| 5 | WPW10416486 | Panel, Rear Console (Replaces: W10416486) |
|
$ 119.15 | |||||
| 6 | W10112578 | Harness, Bracket |
|
- | |||||
| 7 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 120.65 | |||||
| 8 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 9 | W11661755 | Switch, Temperature (Replaces: W10420747) |
|
$ 31.23 | |||||
| 10 | W11778253 | Screen, Lint (Replaces: 8558463) |
|
Immediately | $ 49.17 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 12 | WP90767 | Screw, 8-18 X 5/8 (Replaces: 3348629) |
|
Immediately | $ 7.43 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 14 | W10450290 | Harness, Wiring |
|
Immediately | $ 118.05 | ||||
| 15 | WP8563663 | Top (Replaces: 8559800) |
|
Immediately | $ 314.33 | ||||
| 16 | WPW10453947 | Knob, Control (Replaces: W10453947) |
|
$ 49.28 | |||||
| 17 | WPW10436303 | Timer, 60 Hz. (Replaces: W10436303) |
|
Immediately | $ 293.72 | ||||
| 18 | W10115482 | Panel, Console |
|
- | |||||
| 19 | WPW10711289 | Timer Knob Assembly (Replaces: W10453946) |
|
Immediately | $ 7.50 | ||||
| 20 | WP357213 | Nut, Push In (Replaces: 357213) |
|
$ 6.98 |
