Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10270272 Use & Care Guide Appelez-nous -
1 W10475389 Tech Sheet Appelez-nous -
1 W10270376 Energy Guide Appelez-nous -
2 N/P Cabinet (not A Servicable Part) Appelez-nous -
3 W10177767 Cover, Left Hin (black) Special Order $ 20.10

4 B5759655 Gasket Special Order $ 11.73

5 W11820444 Roller Assy. (left)   (Replaces: W10275850) In-Stock Immediately $ 33.62

5 W11820445 Roller Assy. (right)   (Replaces: W10275849) In-Stock Immediately $ 33.62

6 WPW10141622 Foot Brake   (Replaces: W10141622) In-Stock Immediately $ 7.42

7 WP12566607ED Hinge, Left Top   (Replaces: 12566607ED) Special Order $ 81.98

9 WP8281196 Screw   (Replaces: 67006521) In-Stock Immediately $ 6.80

10 12684202B Cover, Right Hinge (black) Appelez-nous -
11 WP489349 Screw   (Replaces: 12990101) In-Stock Immediately $ 7.59

12 WP67003405 Block, Pivot   (Replaces: 12698403) In-Stock Immediately $ 7.39

14 WP489349 Screw (3)   (Replaces: 12992403) In-Stock Immediately $ 7.59

15 W10918164 Hinge, Center (lt) (black)   (Replaces: 13000007ED) Special Order $ 82.38

16 WP12566606ED Hinge, Right Top   (Replaces: 12566606ED) In-Stock Immediately $ 42.42

17 67003485 Cover, Corner (black)   (Replaces: 12587703B) In-Stock Immediately $ 19.93

20 67006564 Screw (4)   (Replaces: 12991302) In-Stock Immediately $ 7.34

21 W10211854 Cover, Unit Special Order $ 160.53

22 WPW10534153 Grille, Toe (black)   (Replaces: W10244561N) Special Order $ 139.11

24 W10619951 Tube, Drain   (Replaces: W10210988) In-Stock Immediately $ 41.61

25 67006425 Screw   (Replaces: 12990511) In-Stock Immediately $ 6.57

26 12820505 Fiber, Acoustic Special Order $ 71.70

31 12579702 Shim, Top Hinge Appelez-nous -
32 WP7101P126-60 Screw, Block   (Replaces: 12990303) In-Stock Immediately $ 7.52

33 W10918164 Hinge, Center (rt) (black)   (Replaces: 13000008ED) Special Order $ 82.38

34 W10208592 Guard, Water Valve Appelez-nous -
35 W10485986 Sweep-water Valve In-Stock Immediately $ 11.66


    View Diagram in Separate Window     Print Icon   Print Part List

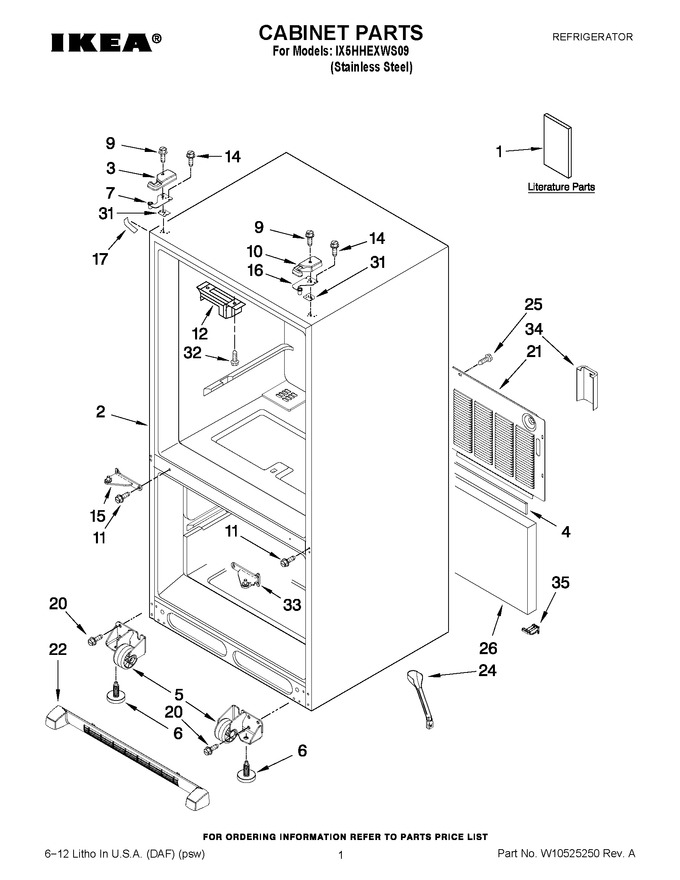

Diagram for IX5HHEXWS09
