01 - Cover Sheet

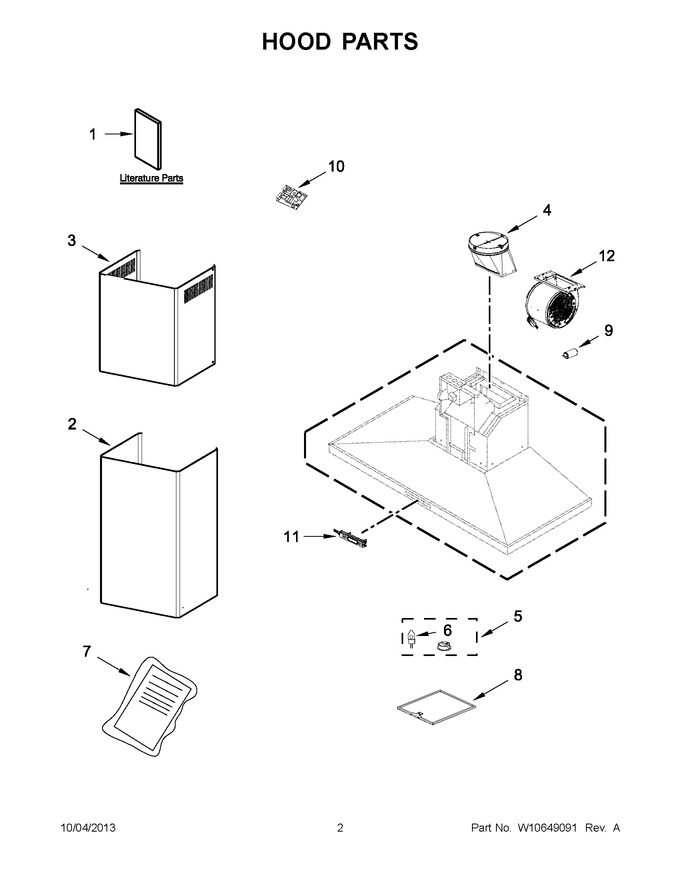

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10274311 | Use & Care Guide |
|
- | |||||
| 2 | W11321566 | Chimney, Lower (Replaces: W10291599) |
|
$ 360.81 | |||||
| 3 | W11321566 | Chimney, Upper (Replaces: W10291601) |
|
$ 360.81 | |||||
| 4 | W10291603 | Assembly, Damper |
|
$ 92.46 | |||||
| 5 | WPW10562734 | Assembly, Light Puck (Replaces: W10562734) |
|
Immediately | $ 125.53 | ||||
| 6 | WPW10571723 | Bulb, Halogen 40 Watts (Replaces: W10571723) |
|
Immediately | $ 26.18 | ||||
| 7 | W11088595 | Hardware, Install (Replaces: W10291605) |
|
Immediately | $ 82.13 | ||||
| 8 | W10291612 | Filter, Grease |
|
$ 90.85 | |||||
| 9 | 8186677 | Capacitor (25 Mf) |
|
$ 212.19 | |||||
| 10 | WPW10291604 | Board, Power (Replaces: W10291604) |
|
$ 284.26 | |||||
| 11 | W10295846 | Control, Electric |
|
$ 398.54 | |||||
| 12 | WPW10291602 | Assembly, Fan (Replaces: W10291602) |
|
Immediately | $ 583.32 | ||||
| NI | W10272068 | Accessories, Charcoal Filter Kit (for Non-vented Installations Only) |
|
Immediately | $ 67.19 | ||||
| NI | W10272075 | Accessories, Chimney Extension Kit |
|
$ 709.52 | |||||
| NI | W10446915 | Accessories, 6`` Makeup Air Kit |
|
$ 316.52 | |||||
| NI | W10272060 | Accessories, Recirculation Kit |
|
$ 255.88 |
