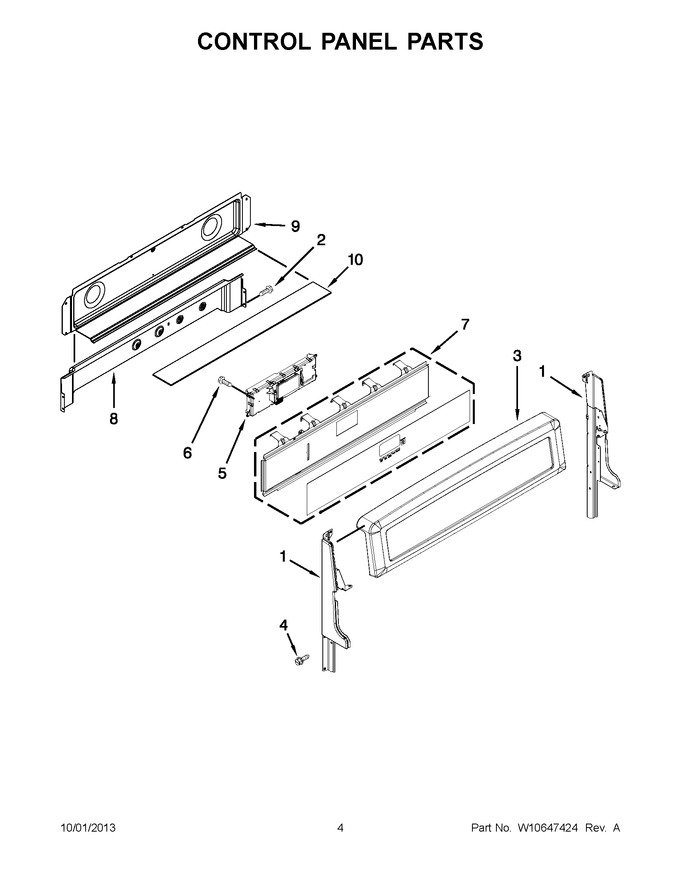

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10319109 Support, Backguard (black (left Hand)) Special Order $ 83.56

1 W10319110 Support, Backguard (white (left Hand)) Special Order $ 86.36

1 W10319111 Support, Backguard (black (right Hand)) Special Order $ 43.80

1 W10319112 Support, Backguard (white (right Hand)) Special Order $ 84.41

2 W11233072 Screw   (Replaces: 7101P338-60) In-Stock Immediately $ 13.25

3 W10097270 Console (white) Special Order $ 118.50

3 W10097310 Console (stainless) Special Order $ 116.84

3 W10097280 Console (black) Special Order $ 119.25

4 WP98008545 Screw (black)   (Replaces: 7101P633-60) Special Order $ 16.74

5 W10365421 Electronic, Control Special Order $ 389.52

6 W11347848 Screw   (Replaces: 7101P376-60) Special Order $ 12.81

7 W10297700 Assembly, Membrane (including Bracket) (black) Appelez-nous -
7 W10321780 Assembly, Membrane (including Bracket) (white) Special Order $ 261.46

7 W10297701 Assembly, Membrane (including Bracket) (stainless) Special Order $ 242.42

8 W10278697 Shield, Vent In-Stock Immediately $ 165.00

9 W10296773 Cover, Backguard Special Order $ 175.07

10 W11684874 Insulation, Wire Cover   (Replaces: W10309232) Special Order $ 32.00
