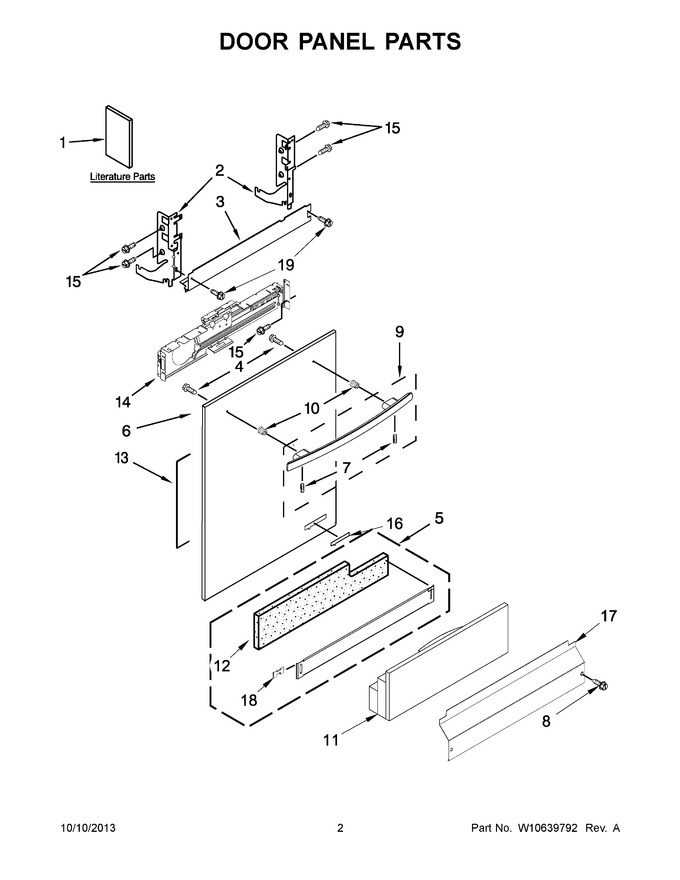

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10501738 | Installation Instructions |
|
- | |||||
| 1 | W10638772 | Energy Guide |
|
- | |||||
| 1 | W10596235 | Use & Care Guide, English/french |
|
- | |||||
| 1 | W10455257 | Tech Sheet, English |
|
- | |||||
| 1 | W10455258 | Tech Sheet, French |
|
- | |||||
| 2 | W11806608 | Arm, Hinge (right Hand) (Replaces: 8534853) |
|
Immediately | $ 128.02 | ||||
| 2 | W11806565 | Arm, Hinge (left Hand) (Replaces: 8534854) |
|
Immediately | $ 128.15 | ||||
| 3 | W10850371 | Barrier, Vapor Assembly (Replaces: W10321449) |
|
Immediately | $ 29.59 | ||||
| 4 | W10826179 | Screw (Replaces: W10316572) |
|
Immediately | $ 6.80 | ||||
| 5 | W10871196 | Toe Panel (black) (Replaces: 8558252) |
|
$ 156.64 | |||||
| 5 | WPW10586591 | Toe Panel (white) (Replaces: 8558253) |
|
$ 278.45 | |||||
| 6 | WPW10501719 | Panel, Front (includes Items 4, 10 & 16) (black) (Replaces: W10501719) |
|
$ 308.07 | |||||
| 6 | WPW10501720 | Panel, Front (includes Items 4, 10 & 16) (white) (Replaces: W10501720) |
|
$ 342.85 | |||||
| 7 | W10276608 | Screw, Set |
|
$ 42.06 | |||||
| 8 | WP302868 | Screw (black) (Replaces: 302868) |
|
Immediately | $ 7.36 | ||||
| 8 | WP3400836 | Screw (white) (Replaces: 3400836) |
|
$ 7.29 | |||||
| 9 | WPW10496321 | Handle Assembly (black) (Replaces: W10496321) |
|
$ 205.63 | |||||
| 9 | W10496320 | Handle Assembly (white) |
|
$ 84.58 | |||||
| 10 | W10208695 | Stud, Mounting |
|
$ 20.30 | |||||
| 11 | W10831329 | Insulation, Three Layer (Replaces: W10350437) |
|
Immediately | $ 38.97 | ||||
| 12 | W10831329 | Insulation, Toe Panel (Replaces: W10385107) |
|
Immediately | $ 38.97 | ||||
| 13 | WPW10073520 | Insulation, Door (Replaces: W10073520) |
|
$ 86.61 | |||||
| 14 | W11116870 | Bracket, Control Panel (Replaces: W10194911) |
|
$ 80.96 | |||||
| 15 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 7.43 | |||||
| 16 | W10190723 | Nameplate (white) |
|
$ 100.76 | |||||
| 16 | WPW10214168 | Nameplate (black) (Replaces: W10190724) |
|
$ 77.36 | |||||
| 17 | WPW10441007 | Access Panel (white) (Replaces: W10195778) |
|
$ 153.85 | |||||
| 17 | W11763736 | Access Panel (black) (Replaces: W10195777) |
|
Immediately | $ 38.03 | ||||
| 18 | WP8269016 | Clip, Ground (Replaces: 8269016) |
|
$ 10.09 | |||||
| 19 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 7.56 |
