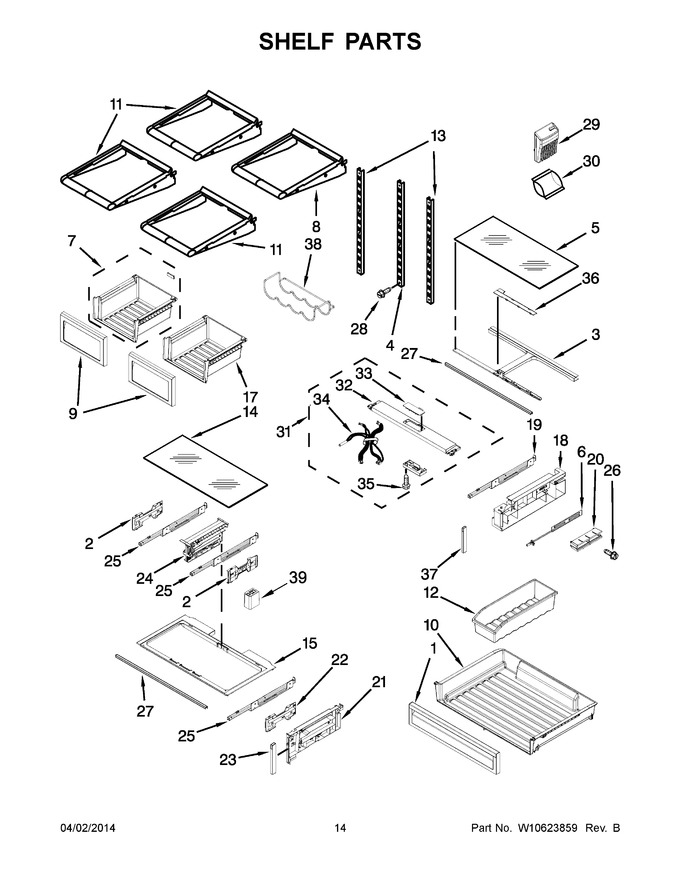

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10564306		Front, Pantry				$ 65.04
2	W10562471		Plate, Slide Center				$ 24.27
3	W10564564		Support, Pantry		Appelez-nous	-
4	W10467461		Ladder, Center			Immediately	$ 47.08
5	WPW10248799		Glass, Pantry   (Replaces: W10248799)				$ 202.57
6	W10342618		Heater, Pantry				$ 79.25
7	W11227365		Pan, Crisper   (Replaces: W10564301)				$ 138.96
8	W10673457		Shelf, Fixed		Appelez-nous	-
9	WPW10564297		Front, Crisper   (Replaces: W10564297)				$ 146.96
10	W10860197		Pan, Pantry   (Replaces: W10654845)			Immediately	$ 108.12
11	WPW10564571		Shelf, Full   (Replaces: W10564571)				$ 415.42
12	W10591235		Divider, Pantry		Appelez-nous	-
13	W11819951		Ladder, Side   (Replaces: W10467460)		Appelez-nous	-
14	WPW10568000		Glass, Crisper   (Replaces: W10568000)				$ 214.65
15	W10561180		Cover, Crisper				$ 150.10
17	W10859100		Pan, Crisper   (Replaces: W10562550)				$ 182.21
18	W10584635		Plate, Side Pantry (right Hand)				$ 108.99
18	W10584634		Plate, Side Pantry (left Hand)				$ 105.31
19	W11759682		Slide, Pantry (right Hand)   (Replaces: W10499294)				$ 62.90
19	W10499289		Slide, Pantry (left Hand)				$ 319.27
20	W10432697		Insulation, Sideplate				$ 13.17
21	W11329364		Plate, Crisper (left Hand)   (Replaces: W10562800)				$ 83.09
21	W11329579		Plate, Crisper (right Hand)   (Replaces: W10562803)				$ 83.58
22	W10562802		Plate, Side				$ 130.55
23	W10562814		Plate, Crisper Front		Appelez-nous	-
24	W10562425		Track, Center				$ 63.53
25	W11233912		Slide, Crisper   (Replaces: W10248819)				$ 255.99
26	WP67006908		Screw   (Replaces: 12990518)			Immediately	$ 7.90
27	WPW10236512		Support, Front   (Replaces: W10236512)				$ 120.65
28	W10423561		Screw		Appelez-nous	-
29	W10564202		Holder, Filter				$ 20.57
30	W10346771		Filter, Produce Preserver		Appelez-nous	-
31	W11048824		Cover, Front (includes Led Assembly)   (Replaces: W10619928)				$ 313.08
32	WPW10562532		Cover, Top   (Replaces: W10562532)				$ 91.60
33	WPW10608793		User Interface Assembly   (Replaces: W10608793)				$ 235.76
34	W10610324		Harness, Wire (includes Thermistor)				$ 116.96
35	W11311945		Screw   (Replaces: 12990204)				$ 13.25
36	W10564570		Support, Pantry Cover		Appelez-nous	-
37	W10562479		Plate, Pantry Front				$ 14.51
38	W10413979		Rack, Wine				$ 137.51
39	W10562473		Support, Crisper		Appelez-nous	-
