View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

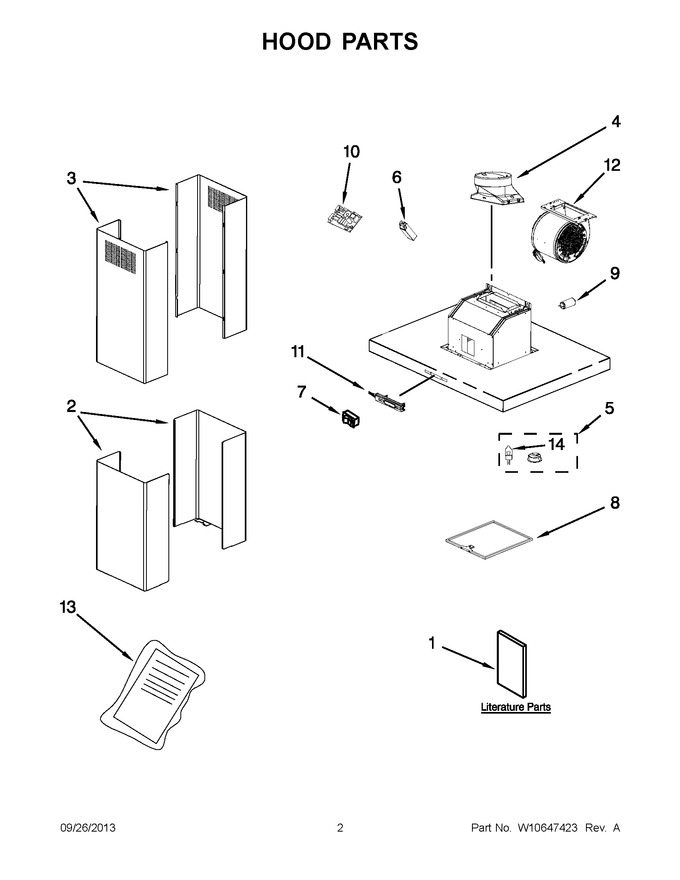

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10322990 | Use & Care Guide |
|
- | |||||
| 2 | W11321566 | Chimney, Lower (Replaces: W10291599) |
|
$ 360.81 | |||||
| 3 | W11328694 | Chimney, Upper (Replaces: W10296312) |
|
Immediately | $ 356.45 | ||||
| 4 | W10847841 | Damper, Hood (plastic) (Replaces: W10592040) |
|
$ 147.46 | |||||
| 5 | WP8186678 | Assembly, Light (Replaces: 8186678) |
|
$ 73.21 | |||||
| 6 | W11186486 | Transformer (110-127v,20-6w) (Replaces: 8186686) |
|
Immediately | $ 206.24 | ||||
| 7 | W10351866 | Rocker Switch |
|
- | |||||
| 8 | W10351855A | Filter, Grease (Replaces: W10351855) |
|
$ 188.92 | |||||
| 9 | 8186677 | Capacitor (25 Mf) |
|
$ 212.19 | |||||
| 10 | WPW10291604 | Board, Power (Replaces: W10291604) |
|
$ 284.26 | |||||
| 11 | WPW10638162 | Control, Electronic (Replaces: W10638162) |
|
$ 322.14 | |||||
| 12 | W11106377 | Blower, Fan (Replaces: W10638161) |
|
Immediately | $ 661.19 | ||||
| 13 | W10638163 | Hardware, Installation |
|
- | |||||
| 14 | WPW10298151 | Bulb, Halogen (Replaces: W10298151) |
|
Immediately | $ 27.66 | ||||
| NI | W10285062 | Accessories, Charcoal Filter |
|
$ 271.78 | |||||
| NI | W10285061 | Accessories, Recirculation Kit |
|
$ 244.87 | |||||
| NI | W10272076 | Accessories, Chimney Extension Kit |
|
$ 611.22 |
