SELECT A DIAGRAM
01 - Cover Sheet

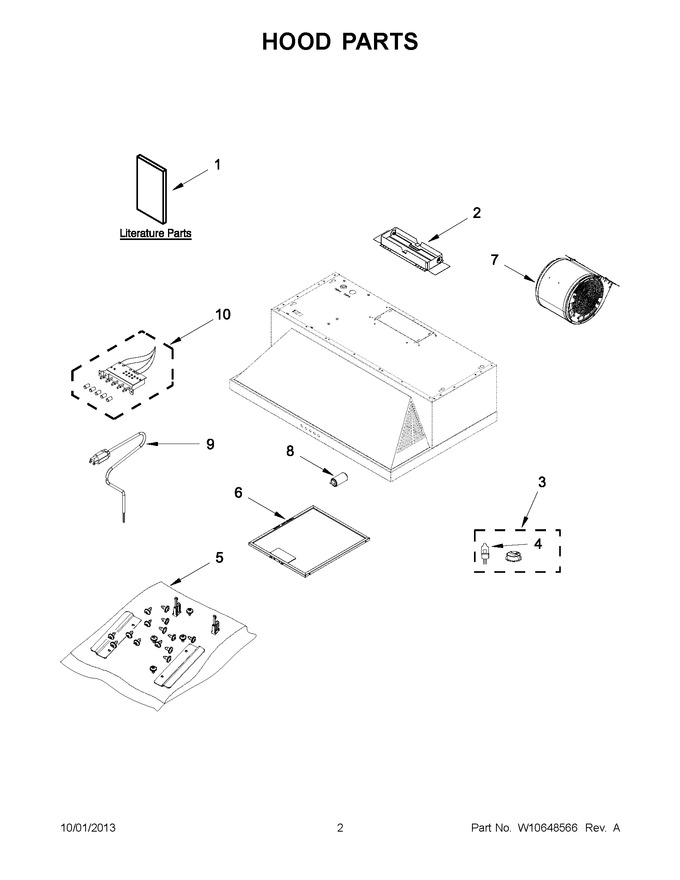

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10274302 | Use & Care Guide |
|
- | |||||
| 2 | WPW10291572 | Damper, Hood (Replaces: W10291572) |
|
$ 176.02 | |||||
| 3 | WPW10562734 | Assembly, Light Puck (Replaces: W10562734) |
|
Immediately | $ 119.55 | ||||
| 4 | WPW10571723 | Bulb, Halogen 40 Watts (Replaces: W10571723) |
|
Immediately | $ 24.94 | ||||
| 5 | W11123666 | Hardware (Replaces: W10648475) |
|
$ 106.28 | |||||
| 6 | W10169961A | Filter, Grease (Replaces: W10169961) |
|
Immediately | $ 37.65 | ||||
| 7 | WPW10291577 | Assembly, Fan (Replaces: W10291577) |
|
$ 485.51 | |||||
| 8 | W10256657 | Capacitor |
|
Immediately | $ 84.93 | ||||
| 9 | W11609489 | Cord, Power (Replaces: W10291574) |
|
- | |||||
| 10 | W10648474 | Control |
|
$ 217.38 |
