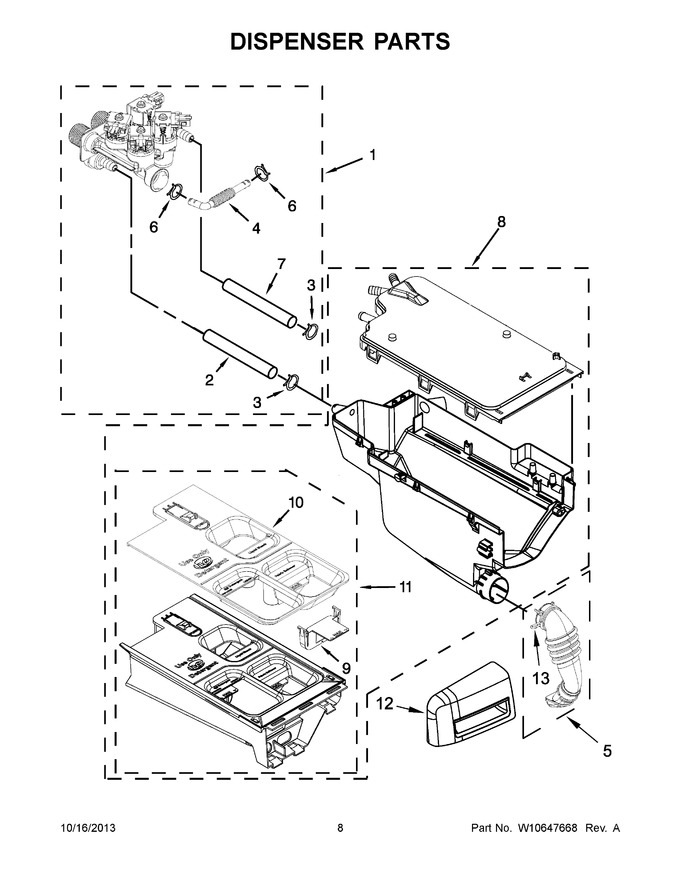

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Top And Cabinet Parts
03 - Door Parts
04 - Control Panel Parts
05 - Dispenser Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10435242 | Valve, Inlet Assembly (Replaces: W10435242) |
|
Immediately | $ 153.61 | ||||
| 2 | WPW10577770 | Hose, Grey (Replaces: W10435239) |
|
$ 28.43 | |||||
| 3 | WP596669 | Clamp, Hose (Replaces: 9724997) |
|
Immediately | $ 7.94 | ||||
| 4 | W10435238 | Hose, Steam |
|
$ 75.37 | |||||
| 5 | WPW10239966 | Hose, Dispenser To Bellow (Replaces: W10239966) |
|
$ 78.39 | |||||
| 6 | WP596669 | Clamp, Hose (Replaces: W10096852) |
|
Immediately | $ 7.94 | ||||
| 7 | WPW10577787 | Hose, Black (Replaces: W10435240) |
|
$ 28.03 | |||||
| 8 | W10575334 | Housing, Dispenser Assembly (includes Items 2, 3 And 7) (Replaces: W10365881) |
|
$ 200.78 | |||||
| 9 | W11084830 | Separator, With Selection Slider (Replaces: W10411442) |
|
$ 162.23 | |||||
| 10 | WPW10365887 | Siphon, Bleach/softener (Replaces: W10365887) |
|
Immediately | $ 88.69 | ||||
| 11 | WPW10365885 | Drawer, Detergent (complete) (Replaces: W10365885) |
|
$ 109.16 | |||||
| 12 | W10468535 | Handle, Drawer (granite) |
|
$ 141.20 | |||||
| 12 | W10468534 | Handle, Drawer (white) |
|
$ 62.91 | |||||
| 13 | W10239910 | Clamp, Hose |
|
Immediately | $ 58.77 |
