SELECT A DIAGRAM

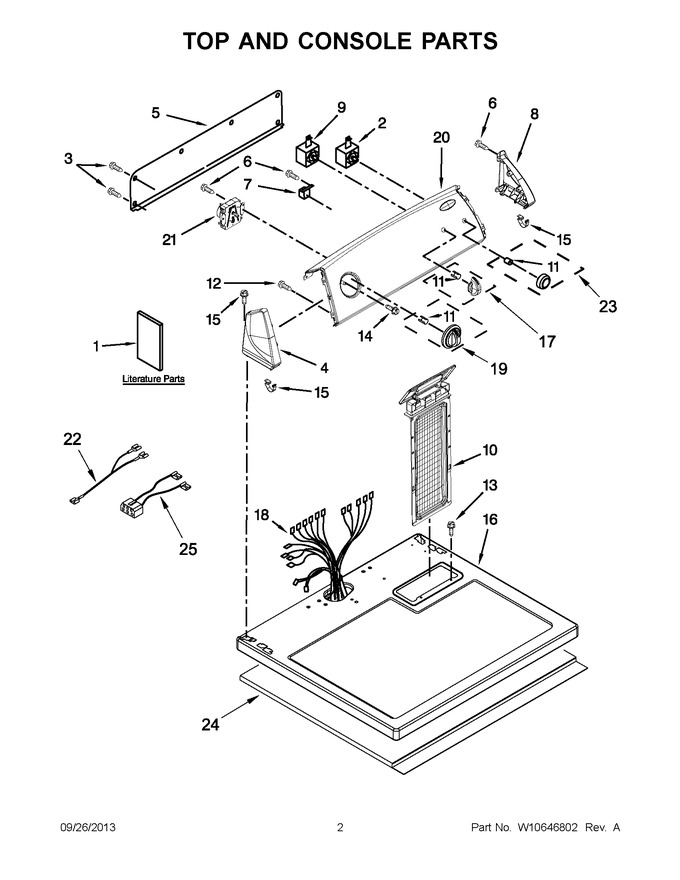

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10329764		Instructions, Installation		Appelez-nous	-
1	W10274613		Wiring Diagram		Appelez-nous	-
1	W10566781		Use And Care Guide		Appelez-nous	-
2	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 23.99
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
4	WPW10251358		End Cap (left) (white)   (Replaces: W10251358)				$ 46.28
5	W10103406		Panel, Rear   (Replaces: 8274261)				$ 121.78
6	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
8	WPW10251355		End Cap (right) (white)   (Replaces: W10251355)				$ 46.25
9	3405152		Switch, Rotary				$ 117.96
10	W11778253		Lint Screen   (Replaces: 8557857)			Immediately	$ 49.17
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
12	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 13.28
14	W10850756		Screw   (Replaces: 8533974)				$ 7.38
15	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
16	WPW10225059		Top (white)   (Replaces: W10225059)				$ 225.62
17	WPW10327523		Assembly, Control Knob (grey)   (Replaces: W10327523)				$ 49.62
18	W10590540		Harness, Wiring		Appelez-nous	-
19	WPW10327522		Assembly, Timer Knob (grey)   (Replaces: W10327522)				$ 45.87
20	W10592518		Console (white)		Appelez-nous	-
21	WP8299779		Timer, 60 Hz.   (Replaces: 8299779)			Immediately	$ 345.33
22	W10203571		Jumper, Push-to-start		Appelez-nous	-
23	W10034770		Knob, Push To Start (white/metallic)		Appelez-nous	-
24	W10123956		Panel, Dampening		Appelez-nous	-
25	3401695		Wire, Jumper (buzzer On/off)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
