SELECT A DIAGRAM

01 - Cover Sheet

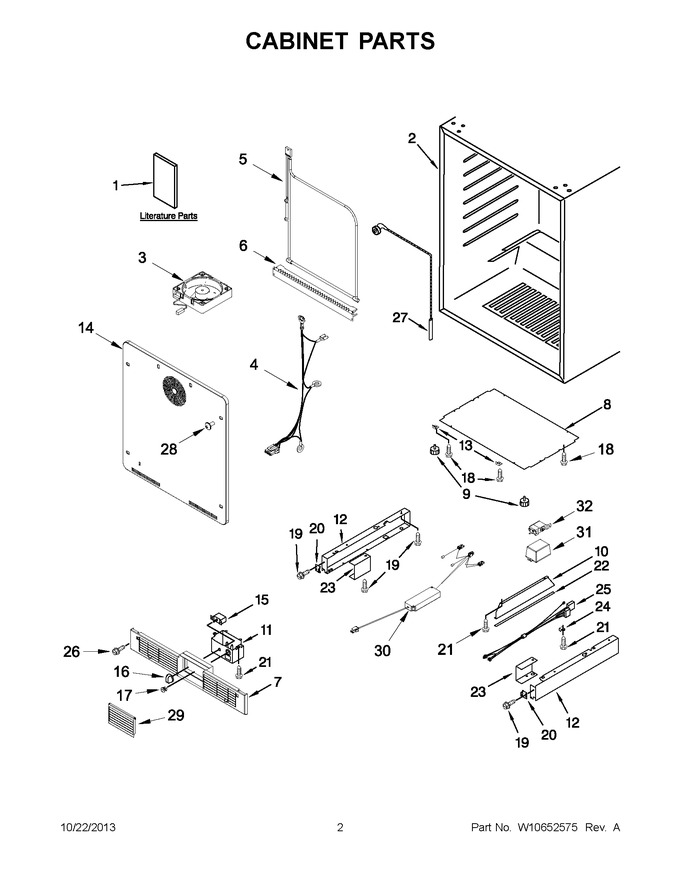

02 - Cabinet Parts


03 - Shelf Parts


04 - Door Parts


05 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10652608		Wiring Diagram		Appelez-nous	-
1	W10652609		Energy Guide		Appelez-nous	-
1	2300280		Use & Care Guide		Appelez-nous	-
2	N/P		Cabinet (not A Service Part)		Appelez-nous	-
3	W10854409		Motor & Fan   (Replaces: W10204942)			Immediately	$ 322.47
4	W10622796		Harness, Evaporator				$ 40.40
5	W10622776		Heater, Defrost				$ 262.86
6	4344747		Heat Shield				$ 70.64
7	W10622777		Grille				$ 101.66
8	4344762		Plate, Bottom		Appelez-nous	-
9	W11106296		Leg. Leveling   (Replaces: 4344763)				$ 17.13
10	W10204638		Brace, Support		Appelez-nous	-
11	W10652618		Control Box				$ 50.68
12	W10621526		Side Frame, Right Hand				$ 93.53
12	W10621525		Side Frame, Left Hand				$ 95.30
13	W10622786		Bracket, Grille		Appelez-nous	-
14	W10652627		Cover, Fan		Appelez-nous	-
15	W11211930		Thermostat   (Replaces: 4344860)			Immediately	$ 220.90
16	WP3402573		Knob, Thermostat   (Replaces: 4344768)				$ 95.86
17	WP4344767		Switch, Plunger   (Replaces: 4344767)				$ 53.66
18	4344826		Screw, Grille				$ 15.03
19	W10243104		Screw		Appelez-nous	-
20	W10622791		Clip, Grille		Appelez-nous	-
21	4344825		Screw		Appelez-nous	-
22	4344823		Seal, Brace				$ 91.65
23	4344821		Frame, Support (right Hand)		Appelez-nous	-
23	4344820		Frame, Support (left Hand)		Appelez-nous	-
24	W10270482		Cable Clamp		Appelez-nous	-
25	W10622792		Harness, Wire				$ 92.37
26	W10319184		Screw		Appelez-nous	-
27	W10244414		Bi-metal				$ 100.72
28	4344793		Screw		Appelez-nous	-
29	W10622795		Cover, Grille		Appelez-nous	-
30	W10646523		Power Supply Assembly				$ 301.18
31	W10646526		Ac Relay				$ 222.60
32	W10646528		Dc Relay				$ 245.21

    View Diagram in Separate Window       Print Part List
