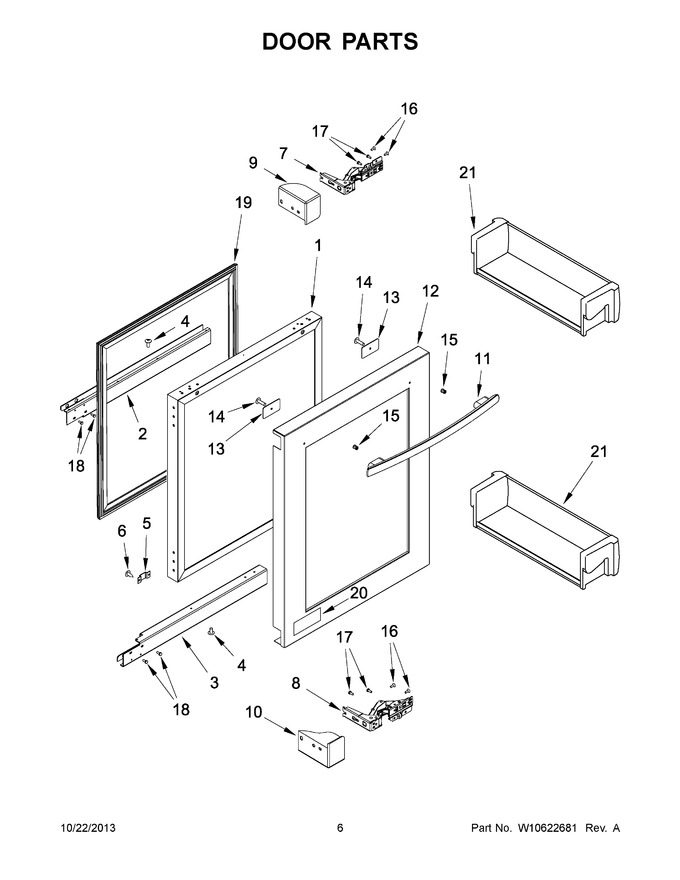

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10623024		Door Assembly		Appelez-nous	-
2	W10623026		Hinge Plate, Top Left Hand|		Appelez-nous	-
3	W10623028		Hinge Plate, Bottom Left Hand		Appelez-nous	-
4	W10319187		Screw				$ 66.16
5	W10622808		Switch Plate				$ 24.54
6	W10319184		Screw		Appelez-nous	-
7	W10622810		Assembly, Hinge (top Mount)				$ 258.35
8	W10622809		Assembly, Hinge (bottom Mount)				$ 256.77
9	W10622812		Cover, Hinge (upper)				$ 113.43
10	W10622811		Cover, Hinge (lower)				$ 113.43
11	W10622019		Handle			Immediately	$ 324.81
12	W10623023		Door Skin, Stainless Steel				$ 321.72
13	W11263339		Plate, Door Handle   (Replaces: W10622815)				$ 15.65
14	W10859467		Screw, Handle   (Replaces: W10204866)				$ 72.21
15	WP8564951		Stud, Handle Mounting   (Replaces: W10319166)			Immediately	$ 17.40
16	W10780349		Screw   (Replaces: W10622816)				$ 46.80
17	W10319189		Screw				$ 64.03
18	W10622817		Screw				$ 23.10
19	WPW10624183		Gasket, Door   (Replaces: W10624183)				$ 244.37
20	WPW10214168		Name Plate   (Replaces: W10292471)				$ 77.36
21	W10175958		Door Bin		Appelez-nous	-
NI	N/P		Optional Parts Not Illustrated		Appelez-nous	-
NI	8171420		Cleaner		Appelez-nous	-
