View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

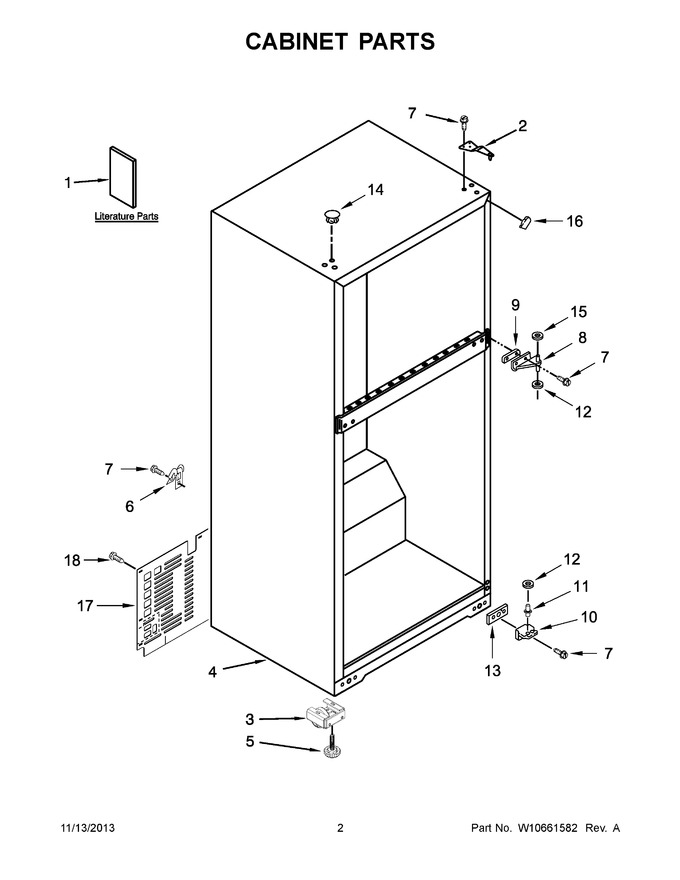

02 - Cabinet Parts
03 - Door Parts
04 - Liner Parts
05 - Unit Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 677969 | Do-it-yourself Repair Manuals |
|
$ 30.30 | |||||
| 1 | W10402929 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10594984 | Energy Label |
|
- | |||||
| 1 | W10214129 | Use & Care Guide |
|
- | |||||
| 2 | WP2261963 | Top Hinge Assembly (Replaces: 2261963) |
|
Immediately | $ 107.48 | ||||
| 3 | WPW10142530 | Assembly, Roller (Replaces: W10142530) |
|
Immediately | $ 106.29 | ||||
| 4 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 5 | WPW10133299 | Leveler (Replaces: W10133299) |
|
$ 11.12 | |||||
| 6 | 549193 | Clamp, Power Cord |
|
$ 12.65 | |||||
| 7 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 8 | WP2166037 | Hinge Assembly, Center (Replaces: 2166086) |
|
$ 76.57 | |||||
| 9 | 2166043 | Shim, Hinge Center (white) |
|
$ 62.78 | |||||
| 10 | WP2325482 | Hinge, Bottom (Replaces: 2325482) |
|
Immediately | $ 72.00 | ||||
| 11 | WP2325483 | Pin, Bottom Hinge (Replaces: 2325483) |
|
Immediately | $ 6.80 | ||||
| 12 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 9.67 | ||||
| 13 | WP2201567 | Shim, Bottom Hinge (Replaces: 2201567) |
|
Immediately | $ 7.34 | ||||
| 14 | WPW10520304 | Hole Plug (white) (Replaces: W10520304) |
|
Immediately | $ 17.30 | ||||
| 15 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 10.28 | ||||
| 16 | W10859322 | Corner Filler (white) (Replaces: 2166003) |
|
$ 7.28 | |||||
| 17 | W10570558 | Cover Unit |
|
$ 93.06 | |||||
| 18 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 |
