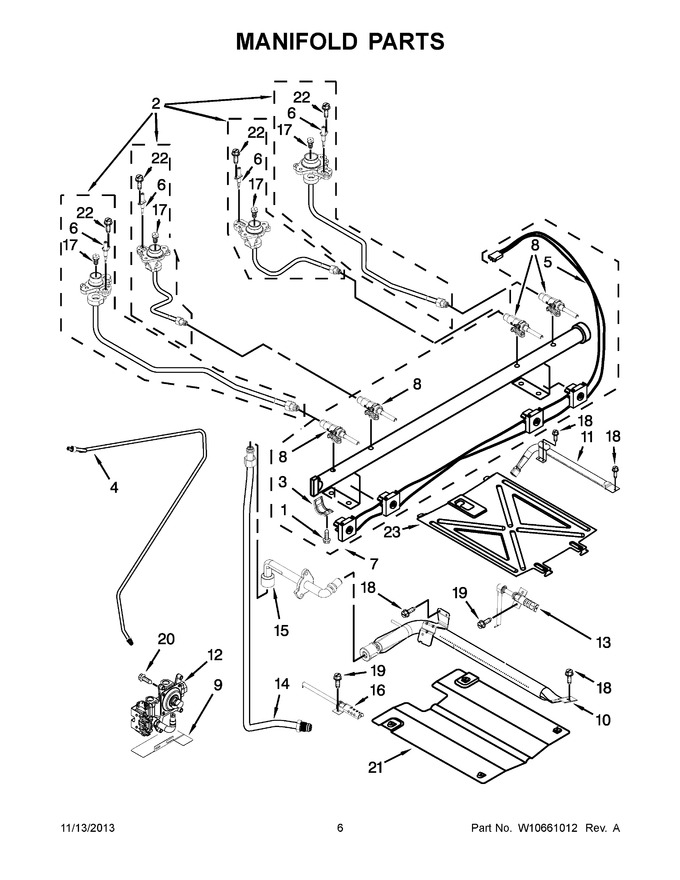

04 - Manifold Parts


05 - Door Parts


06 - Chassis Parts


07 - Drawer And Rack Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10295997		Screw, Valve				$ 6.59
2	W11197500		Assembly, Orifice Holder (15k) (left Front)   (Replaces: W10473936)				$ 100.67
2	W11700294		Assembly, Orifice Holder (9.5k) (left Rear)   (Replaces: W10473932)				$ 75.79
2	W11700304		Assembly, Orifice Holder (5k) (right Rear)   (Replaces: W10474162)				$ 73.01
2	W11234417		Assembly, Orifice Holder (15k) (right Front)   (Replaces: W10474166)				$ 90.12
3	W10949105		Bracket, Saddle Valve   (Replaces: W10295996)				$ 20.48
4	W11680399		Tubing (manifold To Regulator)   (Replaces: W10215439)				$ 143.42
5	WPW10295998		Harness, Manifold   (Replaces: W10295998)				$ 205.41
6	WPW10216419		Electrode   (Replaces: W10216419)			Immediately	$ 33.05
7	W10314241		Assembly, Manifold		Appelez-nous	-
8	WPW10279615		Valve, Gas (15k) (left Front & Right Front)   (Replaces: W10279615)				$ 233.02
8	WPW10247744		Valve, Gas (5k) (right Rear)   (Replaces: W10247744)				$ 252.11
8	WPW10279614		Valve, Gas (9.5k) (left Rear)   (Replaces: W10279614)				$ 251.83
9	W10224921		Bracket, Aegis		Appelez-nous	-
10	WP8054078		Burner, Broiler   (Replaces: 8054078)			Immediately	$ 215.42
11	WP9758078		Burner, Bake   (Replaces: 9758078)				$ 203.46
12	WPW10602001		Regulator   (Replaces: W10602001)			Immediately	$ 306.87
13	WP9758079		Electrode, Bake   (Replaces: 9758079)			Immediately	$ 43.26
14	W10420040		Tube, Broiler Supply				$ 175.09
15	W10340259		Fitting, Broiler		Appelez-nous	-
16	WP8054129		Electrode, Broil   (Replaces: 8054129)			Immediately	$ 123.43
17	WPW10170506		Orifice (5k) (right Rear)   (Replaces: W10170506)				$ 88.07
17	WPW10347414		Orifice (15k) (left Front & Right Front)   (Replaces: W10347414)				$ 81.45
17	WPW10170508		Orifice (9.5k) (left Rear)   (Replaces: W10170508)				$ 85.69
18	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
19	W11684507		Screw   (Replaces: 3196385)				$ 12.84
20	WP3400016		Screw   (Replaces: 3400016)				$ 7.55
21	W10137062		Spreader, Flame (broiler)		Appelez-nous	-
22	WP8273062		Screw   (Replaces: 8273062)			Immediately	$ 7.12
23	WPW10184491		Spreader, Flame (oven)   (Replaces: W10184491)				$ 228.17
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	WPW10170534		Kit, Lp Conversion   (Replaces: W10170534)				$ 99.80
NI	WPW10400495		Orifice, Lp Bake   (Replaces: W10400495)				$ 84.89
NI	WPW10400498		Orifice, Lp Broil   (Replaces: W10400498)				$ 104.59
