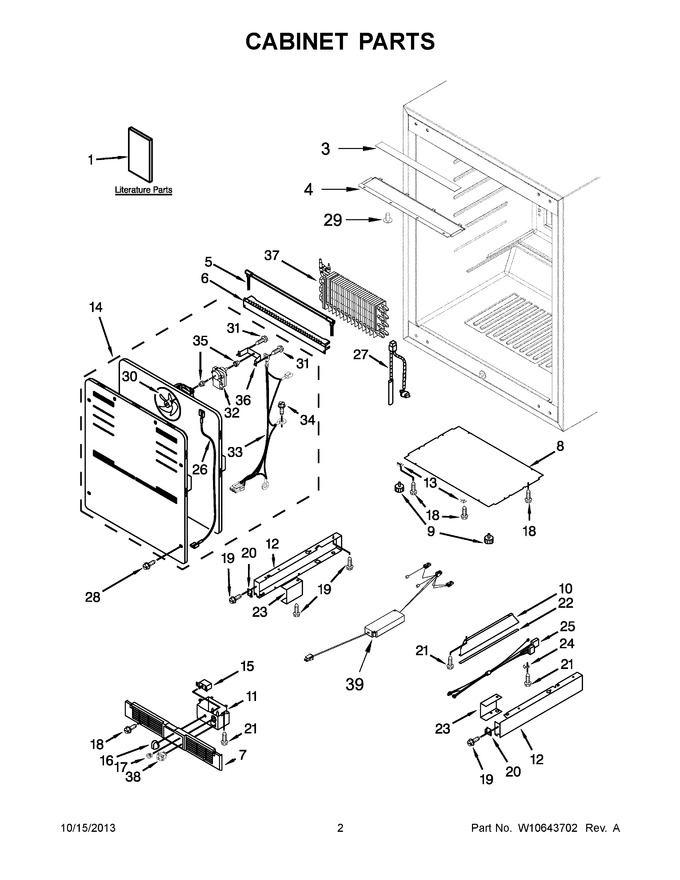

02 - Cabinet Parts
03 - Shelf Parts
04 - Door Parts
05 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2300272 | Use & Care Guide |
|
- | |||||
| 1 | W10645902 | Energy Guide |
|
- | |||||
| 1 | W10645901 | Wiring Diagram |
|
- | |||||
| 2 | N/P | Cabinet (not A Service Part) |
|
- | |||||
| 3 | W10622775 | Led Light Bar |
|
$ 38.81 | |||||
| 4 | W10624137 | Cover, Light |
|
- | |||||
| 5 | W11230119 | Heater, Defrost (Replaces: 4344746) |
|
$ 131.12 | |||||
| 6 | 4344747 | Heat Shield |
|
$ 70.64 | |||||
| 7 | W10238193 | Grille |
|
$ 42.11 | |||||
| 8 | 4344762 | Plate, Bottom |
|
- | |||||
| 9 | W11106296 | Leg. Leveling (Replaces: 4344763) |
|
$ 17.13 | |||||
| 10 | W10204638 | Brace, Support |
|
- | |||||
| 11 | 4344898 | Control Box |
|
$ 84.83 | |||||
| 12 | 4344770 | Frame, Side (right Side) |
|
- | |||||
| 12 | 4344769 | Frame, Side (left Side) |
|
- | |||||
| 13 | W10239388 | Bracket, Grille |
|
- | |||||
| 14 | W10299347 | Evaporator Fan (assembly) |
|
$ 289.90 | |||||
| 15 | WP4344859 | Thermostat (Replaces: 4344859) |
|
$ 249.37 | |||||
| 16 | WP3402573 | Knob, Thermostat (Replaces: 4344768) |
|
$ 95.86 | |||||
| 17 | WP4344767 | Switch, Plunger (Replaces: 4344767) |
|
$ 53.66 | |||||
| 18 | 4344826 | Screw, Grille |
|
$ 15.03 | |||||
| 19 | W10243104 | Screw |
|
- | |||||
| 20 | 4344819 | Clip, Grille |
|
- | |||||
| 21 | 4344825 | Screw |
|
- | |||||
| 22 | 4344823 | Seal, Brace |
|
$ 91.65 | |||||
| 23 | 4344821 | Frame, Support (right Hand) |
|
- | |||||
| 23 | 4344820 | Frame, Support (left Hand) |
|
- | |||||
| 24 | W11456069 | Clip, Harness (Replaces: 4344824) |
|
Immediately | $ 20.16 | ||||
| 25 | W10645906 | Harness, Control Box |
|
- | |||||
| 26 | W10238071 | Transformer Cable |
|
- | |||||
| 27 | W10860146 | Bi-metal, Defrost (Replaces: W10299078) |
|
$ 226.40 | |||||
| 28 | 4344793 | Screw |
|
- | |||||
| 29 | W10622794 | Screw |
|
$ 17.14 | |||||
| 30 | WPW10299081 | Fan Blade (Replaces: W10299081) |
|
$ 97.84 | |||||
| 31 | 4344878 | Screw |
|
- | |||||
| 32 | W10299082 | Evaporator Fan (motor) |
|
$ 86.00 | |||||
| 33 | 4344877 | Harness, Wire |
|
- | |||||
| 34 | 4344832 | Screw |
|
- | |||||
| 35 | 4344778 | Grommet, Fan Motor |
|
- | |||||
| 36 | 4344899 | Bracket, Motor |
|
- | |||||
| 37 | N/P | Evaporator (not Serviced) |
|
- | |||||
| 38 | 4344858 | Switch, Light |
|
$ 99.59 | |||||
| 39 | W10646439 | Power Supply Assembly |
|
- |
