SELECT A DIAGRAM

01 - Cover Sheet


02 - Door Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts

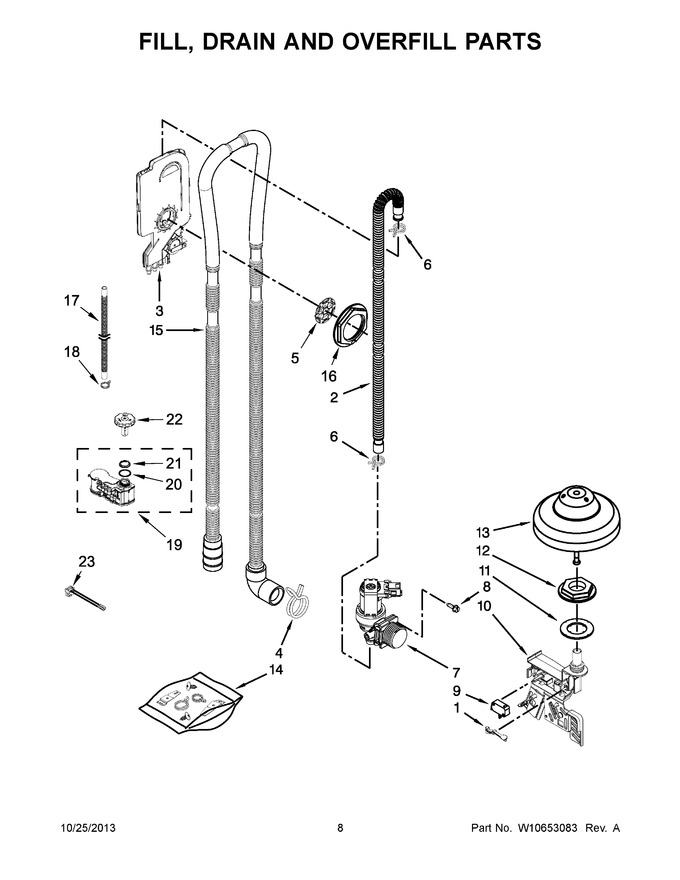

05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Heater Parts


10 - Upper Rack And Track Parts


11 - Lower Rack Parts


12 - Lower Washarm Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10195037		Lever, Overfill Switch   (Replaces: W10195037)			Immediately	$ 10.57
2	W10743461		Hose, Inlet   (Replaces: W10321919)				$ 92.78
3	WPW10458714		Tank, Regen Dosage   (Replaces: W10458714)				$ 92.34
4	WP285655		Clamp, Hose   (Replaces: 370445)			Immediately	$ 7.93
5	W11387338		Nut, Regen Dosage   (Replaces: W10195786)				$ 13.37
6	WP596669		Clamp, Hose   (Replaces: 371505)			Immediately	$ 7.94
7	W11175767		Fill Valve Assembly   (Replaces: W10327247)				$ 169.85
8	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.56
9	WPW10195039		Switch, Overfill Control   (Replaces: W10195039)			Immediately	$ 69.68
10	W10873429		Housing, Overfill (also Order Item 11)   (Replaces: W10195035)			Immediately	$ 21.78
11	WP8531743		Gasket, Flat   (Replaces: 8531743)			Immediately	$ 43.57
12	WPW10195038		Nut, Standpipe   (Replaces: W10195038)			Immediately	$ 7.58
13	WPW10195036		Float & Retainer Assembly   (Replaces: W10195036)			Immediately	$ 79.54
14	WPW10292152		Miscellaneous Parts Bag (contains 2 Screws, 2 Clamps, & 2 Brackets)   (Replaces: W10292152)			Immediately	$ 53.34
15	W10545279		Drain Loop With Check Valve   (Replaces: W10358303)				$ 123.35
16	WPW10213825		Nut, Water Inlet   (Replaces: W10213825)				$ 7.55
17	W10346255		Hose, Softener Outlet				$ 109.12
18	WP596669		Clamp, Hose   (Replaces: 9724997)			Immediately	$ 7.94
19	W10347358		Tank, Water Softener		Appelez-nous	-
20	W10195056		Gasket, Softener Tank				$ 5.27
21	W10195058		Nut, Softener Tank		Appelez-nous	-
22	W10327489		Cap, Softenertank				$ 9.54
23	W10367058		Harness-jumper Flow Meter		Appelez-nous	-
NI	N/P		Following Parts Not .illustrated		Appelez-nous	-
NI	W10620253		Salt (2lb Bag)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
