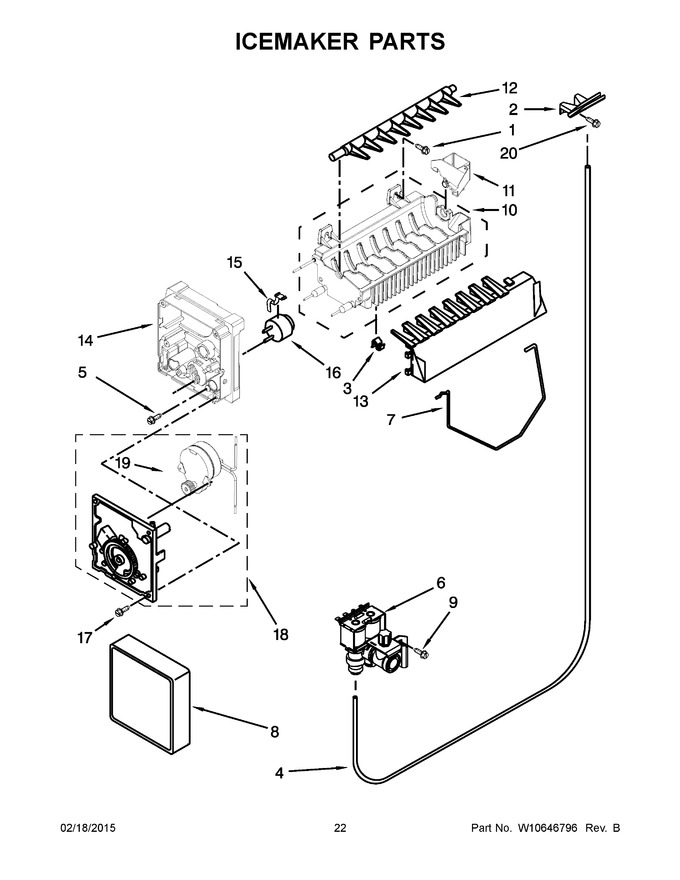

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 2 | W11505385 | Chute, Water (Replaces: 2209774) |
|
$ 31.79 | |||||
| 3 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 9.99 | |||||
| 4 | W10823511 | Tube, Water (Replaces: W10357076) |
|
Immediately | $ 29.17 | ||||
| 5 | W10001280 | Screw |
|
- | |||||
| 6 | WPW10158157 | Filter Valve Assembly (Replaces: W10158157) |
|
$ 237.54 | |||||
| 7 | W11807379 | Assembly, Shut Off Arm (Replaces: 2304354) |
|
Immediately | $ 56.89 | ||||
| 8 | W10289697 | Cover |
|
- | |||||
| 9 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 20.00 | |||||
| 10 | W10122523 | Mold & Heater Assembly |
|
- | |||||
| 11 | W11676540 | Cup, Water Fill (Replaces: W10435665) |
|
$ 20.39 | |||||
| 12 | WP627843 | Ejector (Replaces: 627843) |
|
$ 79.00 | |||||
| 13 | WPW10122563 | Stripper, Ice (Replaces: W10122563) |
|
$ 89.48 | |||||
| 14 | WP2195914 | Support, Housing (Replaces: 2195914) |
|
$ 98.82 | |||||
| 15 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 10.44 | |||||
| 16 | WP2321258 | Thermostat (also Order #542369) (Replaces: 2321258) |
|
$ 93.54 | |||||
| 17 | W10001240 | Screw |
|
$ 8.30 | |||||
| 18 | W10239565 | Module Assembly |
|
- | |||||
| 19 | N/P | Motor (not Serviced Order #18) |
|
- | |||||
| 20 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.25 | |||||
| 100 | W10573473 | Icemaker Assembly (complete) |
|
- |
