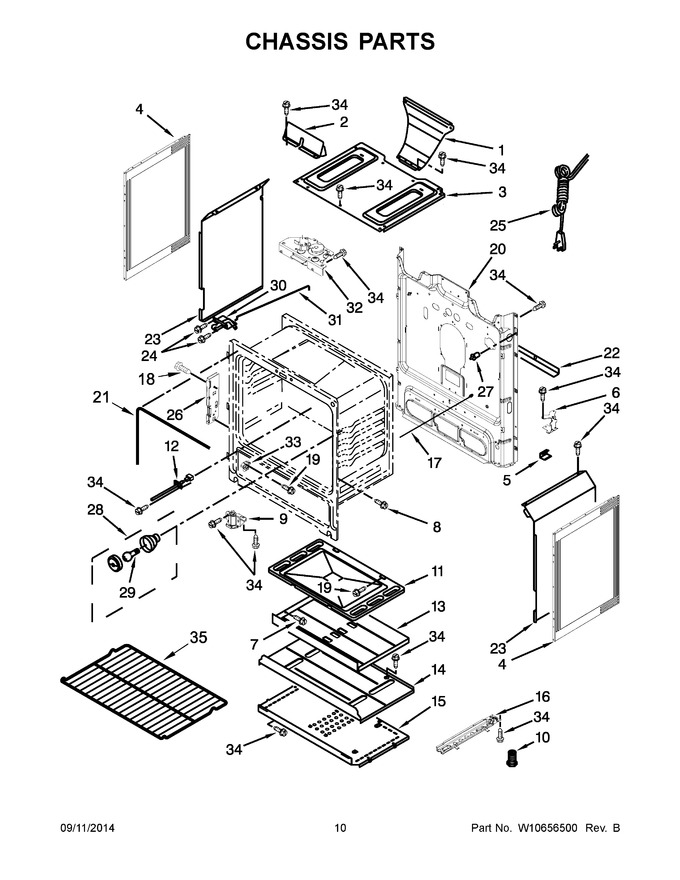

06 - Chassis Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11457094 | Box, Flue (Replaces: W10153186) |
|
$ 142.02 | |||||
| 2 | WP8272747 | Shield, Flue (Replaces: 8272747) |
|
$ 67.06 | |||||
| 3 | W11379351 | Box, Burner (Replaces: 8273036) |
|
$ 57.77 | |||||
| 4 | WPW10575396 | Panel, Side (white) (Replaces: W10575396) |
|
$ 182.19 | |||||
| 5 | W10137382 | Clip, Panel |
|
Immediately | $ 43.58 | ||||
| 6 | 8523249 | Bracket, Manifold |
|
- | |||||
| 7 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 13.25 | ||||
| 8 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 7.47 | |||||
| 9 | WPW10341186 | Assembly, Front Foot (Replaces: W10341186) |
|
Immediately | $ 29.33 | ||||
| 10 | WPW10058460 | Foot, Leveling (Replaces: W10058460) |
|
Immediately | $ 7.42 | ||||
| 11 | W11730226 | Bottom, Oven (Replaces: 3195097) |
|
$ 207.95 | |||||
| 12 | WPW10181986 | Sensor, Oven (Replaces: W10181986) |
|
Immediately | $ 96.15 | ||||
| 13 | 8053967 | Baffle, Burner Oven |
|
$ 284.36 | |||||
| 14 | 8053969 | Shield, Heat |
|
$ 101.74 | |||||
| 15 | 8053968 | Shield, Lower |
|
- | |||||
| 16 | W11818353 | Assembly, Base Rail (right) (Replaces: W10390007) |
|
$ 56.39 | |||||
| 17 | 9757239 | Rod, Door Switch |
|
$ 86.73 | |||||
| 18 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 19 | W10379120 | Screw |
|
- | |||||
| 20 | W10416100 | Back, Main |
|
$ 80.91 | |||||
| 21 | W11542153 | Seal, Door (Replaces: W10658354) |
|
Immediately | $ 45.18 | ||||
| 22 | W10435470 | Brace, Main Back |
|
$ 73.57 | |||||
| 23 | 9761449 | Retainer, Insulation (left) |
|
$ 300.16 | |||||
| 24 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 25 | W11582239 | Cord, Power (Replaces: W10624590) |
|
$ 15.83 | |||||
| 26 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 8.39 | ||||
| 27 | WP9757262 | Switch, Door (Replaces: W10627802) |
|
Immediately | $ 146.71 | ||||
| 28 | W11594027 | Assembly, Light (Replaces: W10454648) |
|
Immediately | $ 78.31 | ||||
| 29 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 30 | WP9761013 | Assembly, Door Latch (front) (Replaces: 9761013) |
|
$ 230.72 | |||||
| 31 | W10078370 | Rod, Push Latch |
|
$ 85.72 | |||||
| 32 | WPW10107820 | Assembly, Door Latch (rear) (Replaces: W10107820) |
|
$ 278.60 | |||||
| 33 | W10807823 | Glide, Drawer Front (Replaces: W10674705) |
|
Immediately | $ 17.37 | ||||
| 34 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 35 | W11520287 | Rack, Oven (Replaces: W10268578) |
|
Immediately | $ 52.19 | ||||
| 16A | W11818353 | Assembly, Base Rail (left) (Replaces: W10390008) |
|
$ 56.39 | |||||
| 23A | 9761448 | Retainer, Insulation (right) |
|
- | |||||
| 4A | W11730303 | Panel, Side (black) (Replaces: W10162245) |
|
Immediately | $ 160.65 | ||||
| 4B | W10162246 | Panel, Side (biscuit) |
|
$ 185.32 | |||||
| NI | W11684915 | Insulation, Wrap (Replaces: 8524099) |
|
$ 111.28 | |||||
| NI | W11688737 | Insulation, Back (Replaces: W10180437) |
|
$ 110.46 |
