Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11520287 Rack, Oven   (Replaces: W10268578) In-Stock Immediately $ 52.19

2 W10813962 Drawer, Storage   (Replaces: W10688022) In-Stock Immediately $ 124.34

3 W10462911 Bracket, Mounting (black & White Models) Appelez-nous -
4 W11230486 Panel, Drawer Front (white)   (Replaces: 8053336) Special Order $ 190.34

5 W11811322 Panel, Drawer Front (stainless)   (Replaces: W11190207) In-Stock Immediately $ 145.34

6 W10807828 Glide, Drawer Rear   (Replaces: W10674708) In-Stock Immediately $ 17.52

7 WP355214 Screw   (Replaces: W10327235) In-Stock Immediately $ 7.92

8 WP3196814 Rivet, Push (white)   (Replaces: 3196814) In-Stock Immediately $ 9.96

3A W11759228 Bracket, Mounting (stainless Models)   (Replaces: W10462909) Special Order $ 25.44

4A W11230490 Panel, Drawer Front (black)   (Replaces: 8053338) Special Order $ 190.43

8A WP3196813 Rivet, Push (black)   (Replaces: 3196813) In-Stock Immediately $ 10.08


    View Diagram in Separate Window     Print Icon   Print Part List

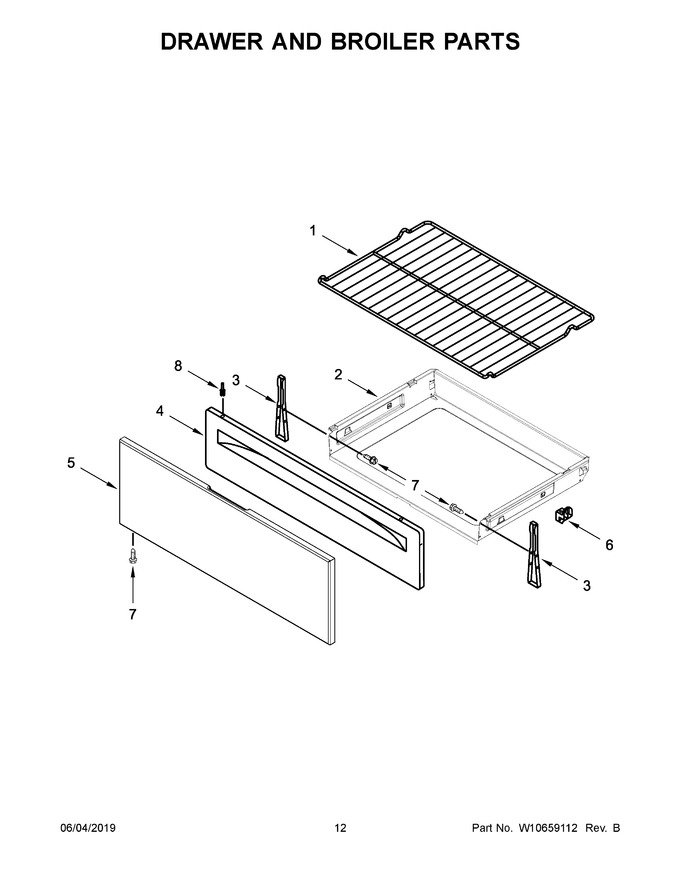

Diagram for WFG524SLAW2
