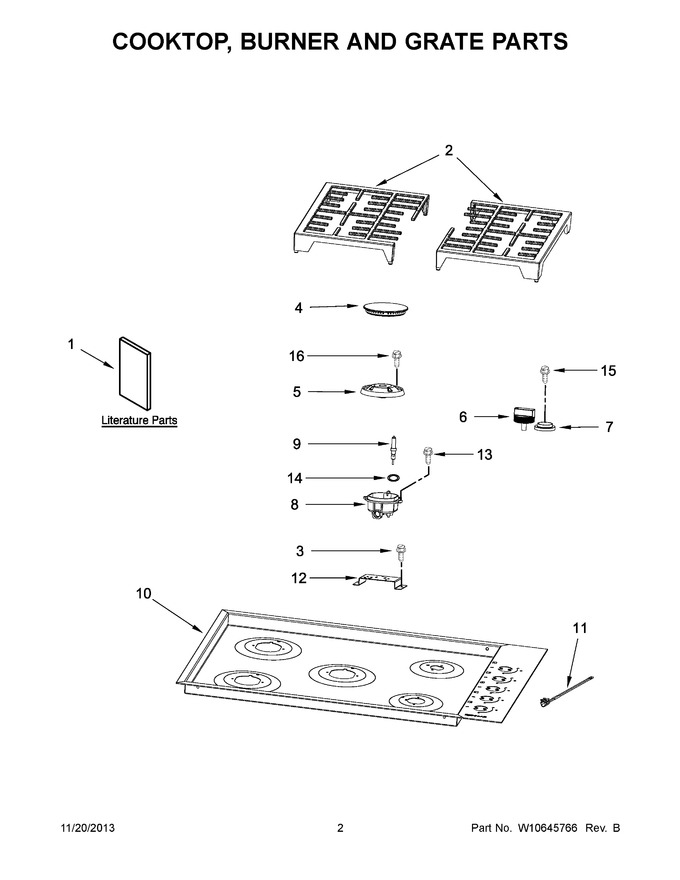

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10588275		Instructions, Installation		Appelez-nous	-
1	W10620796		Diagram, Wiring		Appelez-nous	-
1	W10588274		Guide, Use & Care		Appelez-nous	-
1	W10588276		Lp Conversion Instructions		Appelez-nous	-
1	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
2	WPW10623870		Grate, Burner (side) (pro-line)   (Replaces: W10623870)				$ 444.68
2	WPW10623925		Grate, Burner (side) (stainless Model)   (Replaces: W10623925)				$ 367.19
3	W10626012		Screw , 8-32 X 1/4`` Pan Head		Appelez-nous	-
4	W10617817		Cap, Burner (black (small) (right Rear))				$ 171.41
4	WPW10617815		Cap, Burner (black (large) (left Front, Left Rear, Center))   (Replaces: W10617815)			Immediately	$ 261.35
4	W10617816		Cap, Burner (black (medium) (right Front))				$ 72.49
5	W10617820		Base, Burner (small (right Rear))				$ 77.19
5	W11197492		Base, Burner (large (left Front, Left Rear, Center))   (Replaces: W10617818)			Immediately	$ 128.07
5	W10617819		Base, Burner (medium (right Front))				$ 83.94
6	W10620811		Knob (pro-line)				$ 90.89
6	WPW10620810		Knob (stainless)   (Replaces: W10620810)				$ 164.24
7	W10618500		Bezel, Knob (stainless)			Immediately	$ 147.59
8	WPW10571492		Holder, Orifice (155 Mm) (left Rear)   (Replaces: W10571492)				$ 77.76
8	WPW10571493		Holder Orifice (170mm) (left Front)   (Replaces: W10571493)				$ 77.00
8	W10618475		Holder Orifice (110mm) (right Rear)				$ 72.95
8	WPW10571491		Holder Orifice (132mm) (right Front)   (Replaces: W10571491)				$ 67.61
8	W10618474		Holder Orifice (193mm) (center)				$ 116.35
9	W10623868		Electrode (250mm) (right Rear)				$ 71.02
9	W10617810		Electrode (250mm) (right Front)			Immediately	$ 73.47
9	W10617809		Electrode (695mm) (left Front, Left Rear)				$ 125.28
9	W10617808		Electrode (395mm) (center)				$ 86.43
10	WPW10618506		Cooktop, Main   (Replaces: W10618506)				$ 2,076.49
11	W10623921		Assembly, Indicator Light (led)			Immediately	$ 320.50
12	W10618476		Bracket, Orifice Holder		Appelez-nous	-
13	W10626015		Screw, Injector Holder				$ 17.14
14	W10571930		Clip, Electrode			Immediately	$ 22.80
15	W10637348		Screw			Immediately	$ 27.62
16	W10626017		Screw, Burner Base ( Small Burner )			Immediately	$ 18.16
16	W11676624		Screw, Burner Base ( Large And Medium Burners )   (Replaces: W10626016)			Immediately	$ 14.57
