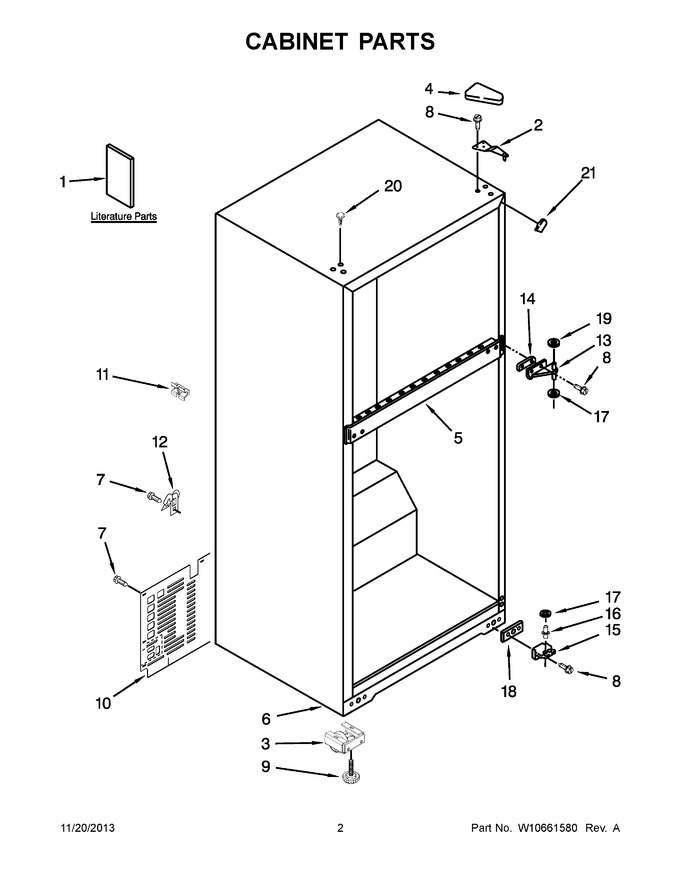

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2316016		Use & Care Guide		Appelez-nous	-
1	677969		Do-it-yourself Repair Manuals				$ 30.30
1	W10402929		Service & Wiring Sheet		Appelez-nous	-
1	W10267768		Energy Label		Appelez-nous	-
2	WP2261963		Assembly, Top Hinge   (Replaces: 2261963)			Immediately	$ 107.48
3	WPW10142530		Assembly, Roller   (Replaces: W10142530)			Immediately	$ 106.29
4	WP2213363		Cover, Hinge (black)   (Replaces: 2213363)			Immediately	$ 17.21
4	WP2213360		Cover, Hinge (white)   (Replaces: 2213360)				$ 18.17
5	N/P		Center Rail (not Serviced)		Appelez-nous	-
6	N/P		Cabinet (not Serviced)		Appelez-nous	-
7	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.34
8	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
9	WPW10133299		Leveler   (Replaces: W10133299)				$ 11.12
10	W10570558		Cover Unit				$ 93.06
11	2266506		Spacer, Back				$ 12.95
12	549193		Clamp, Power Cord				$ 12.65
13	WP2166037		Assembly, Center Hinge   (Replaces: 2166086)				$ 76.57
14	2166043		Shim, Hinge Center (white)				$ 62.78
14	2215385		Shim, Hinge Center (black)				$ 82.21
15	WP2325482		Hinge, Bottom   (Replaces: 2325482)			Immediately	$ 72.00
16	WP2325483		Pin, Bottom Hinge   (Replaces: 2325483)			Immediately	$ 6.80
17	WP487576		Washer, Plastic   (Replaces: 487576)			Immediately	$ 9.67
18	WP2201567		Shim, Bottom Hinge   (Replaces: 2201567)			Immediately	$ 7.34
19	WP489467		Washer, Plastic   (Replaces: 489341)			Immediately	$ 10.28
20	WPW10520305		Hole Plug (black)   (Replaces: W10520305)				$ 17.26
20	WPW10520304		Hole Plug (white)   (Replaces: W10520304)			Immediately	$ 17.30
21	W11500943		Corner Filler (black)   (Replaces: 2215384)				$ 7.18
21	W10859322		Corner Filler (white)   (Replaces: 2166003)				$ 7.28
