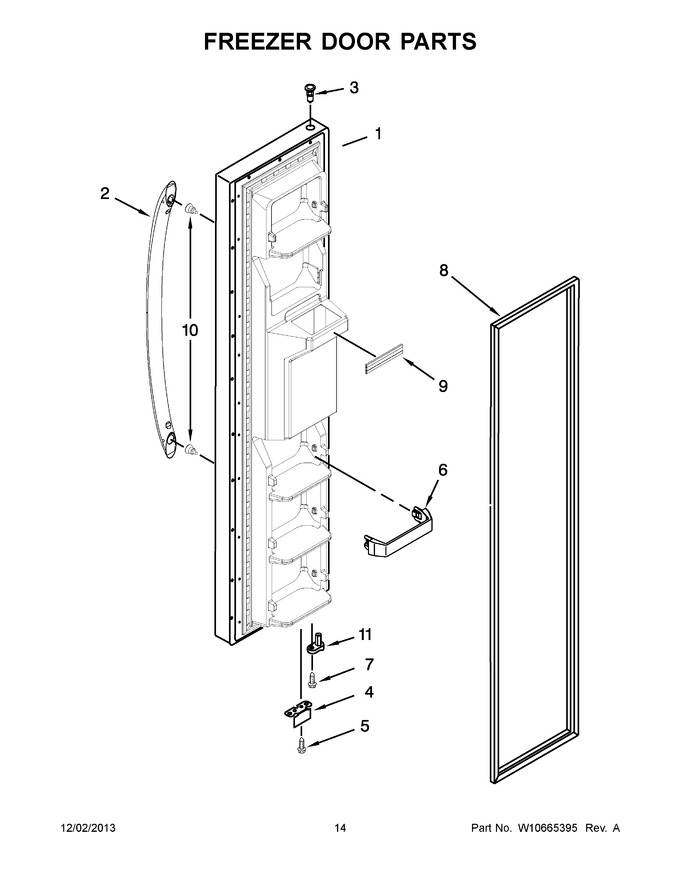

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10408338 | Freezer Door (includes Item 8 And Dispenser Front Parts) (white) (Replaces: W10408338) |
|
$ 1,075.15 | |||||
| 1 | W10408335 | Freezer Door (includes Item 8 And Dispenser Front Parts) (black) |
|
- | |||||
| 1 | W10408337 | Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless) |
|
- | |||||
| 2 | W10805245 | Handle (black) (Replaces: W10557412) |
|
$ 204.75 | |||||
| 2 | W10899551 | Handle (brushed Aluminum) (Replaces: W10407272) |
|
Immediately | $ 169.94 | ||||
| 2 | W10848410 | Handle (white) (Replaces: W10357236) |
|
$ 183.35 | |||||
| 3 | WP2182181 | Thimble (Replaces: 2182181) |
|
$ 7.34 | |||||
| 4 | 2306940 | Bracket, Door Stop (silver) |
|
$ 91.74 | |||||
| 5 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.27 | |||||
| 6 | WP2309717 | Trim, Door (Replaces: 2309717) |
|
$ 52.78 | |||||
| 7 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.43 | |||||
| 8 | 2159080 | Door Gasket, Magnetic (black) (Replaces: 2309654) |
|
$ 293.32 | |||||
| 8 | 2159072 | Door Gasket, Magnetic (beige) (Replaces: 2309604) |
|
$ 291.24 | |||||
| 8 | W10136733 | Door Gasket, Magnetic (grey) (Replaces: 2327162) |
|
$ 323.08 | |||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: W10307492) |
|
Immediately | $ 21.84 | ||||
| 10 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 11 | WP2223752 | Thimble, Cam (Replaces: 2223752) |
|
$ 19.04 |
