SELECT A DIAGRAM

01 - Cover Sheet

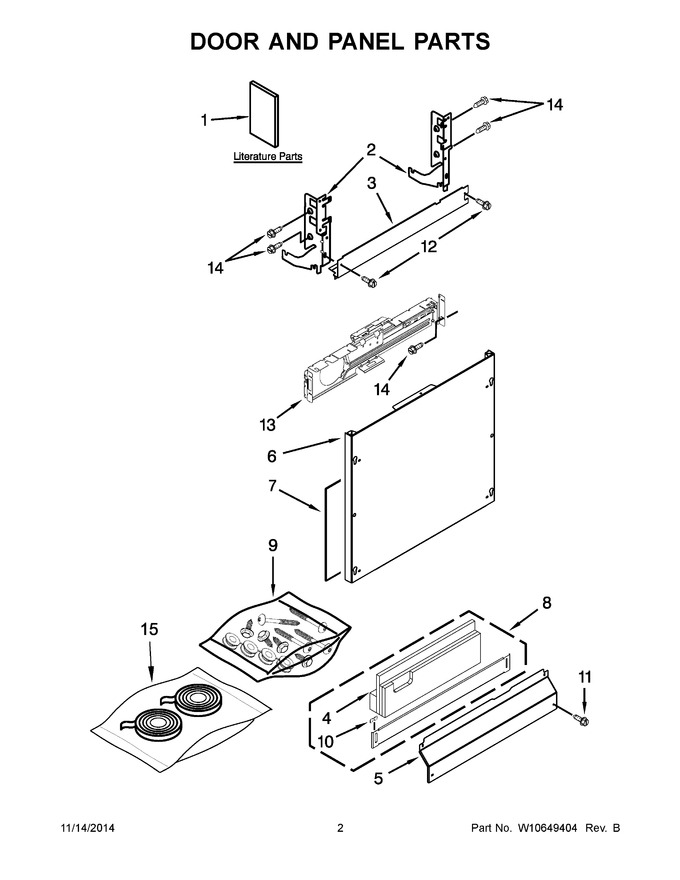

02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Heater Parts


10 - Upper Rack And Track Parts


11 - Lower Rack And Track Parts


12 - Third Level Rack And Track Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10579129		Instructions, Installation		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 128.15
3	W10850371		Vapor Barrier Assembly   (Replaces: W10320859)			Immediately	$ 29.59
4	W10831329		Insulation, Four Layer   (Replaces: W10526105)			Immediately	$ 38.97
5	W11763736		Access Panel (black)   (Replaces: W10195777)			Immediately	$ 38.03
6	W11113792		Panel Front (ready)   (Replaces: W10292632)			Immediately	$ 336.08
7	W10234565		Insulation, Front Panel				$ 62.61
8	W10871196		Toe Panel (black)   (Replaces: W10586590)				$ 156.64
9	WPW10637074		Hardware, Custom Panel   (Replaces: W10195008)			Immediately	$ 67.55
10	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 10.09
11	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 7.36
12	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.56
13	WPW10350242		Bracket, Control   (Replaces: W10350242)				$ 79.49
14	WP3400071		Screw   (Replaces: 3400071)			Immediately	$ 7.43
15	WPW10366978		Seal, Panel Ready   (Replaces: W10366978)			Immediately	$ 26.82
1A	W10710652		Energy Guide		Appelez-nous	-
1B	W10579120		Use & Care Guide		Appelez-nous	-
1C	W10543820		Tech Sheet, English		Appelez-nous	-
1D	W10543821		Tech Sheet, French		Appelez-nous	-
1E	W10195005		Template, 6" Custom Panel		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 128.02

    View Diagram in Separate Window       Print Part List
