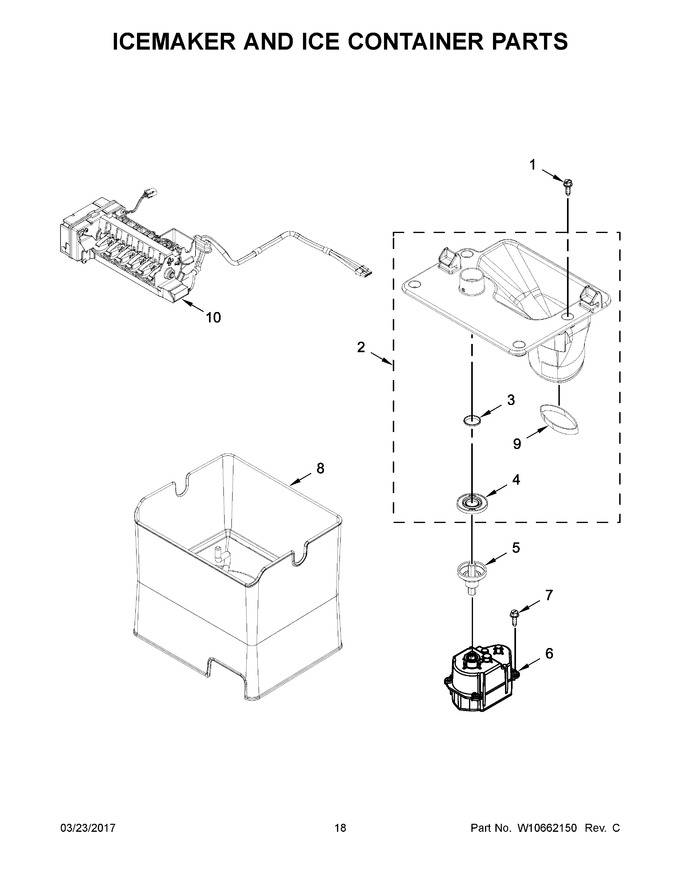

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10272364 | Screw (Replaces: W10272364) |
|
Immediately | $ 10.22 | ||||
| 2 | W11551762 | Plate, Ice Chute (Replaces: W10347055) |
|
$ 65.23 | |||||
| 3 | WP2198628 | Seal (Replaces: 2198628) |
|
Immediately | $ 11.31 | ||||
| 4 | W10847834 | Clip, Retainer (Replaces: W10347120) |
|
$ 12.18 | |||||
| 5 | W11509548 | Shaft, Motor (Replaces: W10347114) |
|
Immediately | $ 29.09 | ||||
| 6 | W10822606 | Motor, Dispenser (Replaces: W10215646) |
|
Immediately | $ 164.30 | ||||
| 7 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 9.63 | ||||
| 8 | WPW10347093 | Assembly, Ice Container (Replaces: W10347093) |
|
Immediately | $ 317.93 | ||||
| 9 | WPW10291905 | Gasket (Replaces: W10291905) |
|
$ 24.91 | |||||
| 10 | W11577195 | Assembly, Icemaker (Replaces: W10764668) |
|
Immediately | $ 186.53 |
