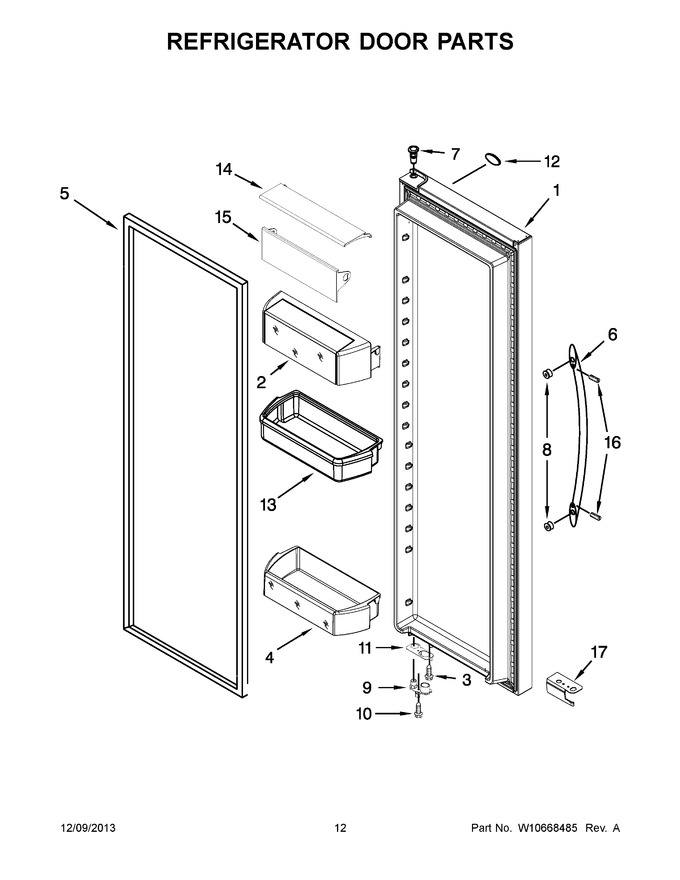

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10637748 | Refrigerator Door (includes Item 5) (stainless) (Replaces: W10644353) |
|
$ 653.31 | |||||
| 2 | WPW10324760 | Door Compartment Assembly (Replaces: W10316889) |
|
$ 77.04 | |||||
| 3 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 7.25 | |||||
| 4 | WPW10527272 | Door Bin, Gallon (Replaces: W10527272) |
|
$ 75.42 | |||||
| 5 | W10355582 | Door Gasket, Magnetic (grey) (Replaces: W10249916) |
|
Immediately | $ 307.13 | ||||
| 6 | W10899551 | Handle (brushed Aluminum) (Replaces: W10407272) |
|
Immediately | $ 169.94 | ||||
| 7 | WP2182181 | Thimble-top (Replaces: 2200086) |
|
$ 7.34 | |||||
| 8 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 9 | WPW10257203 | Door Closer, Upper Cam(grey) (Replaces: W10257203) |
|
$ 11.66 | |||||
| 10 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 10.25 | |||||
| 11 | W11037957 | Bracket, Door Stop (black) (Replaces: W10367462) |
|
$ 72.22 | |||||
| 12 | WPW10511972 | Nameplate (grey) (Replaces: W10511972) |
|
$ 71.60 | |||||
| 13 | WPW10308388 | Door Bin, Shallow (Replaces: W10308388) |
|
$ 70.17 | |||||
| 14 | WPW10316883 | Lid, Utility Bin (Replaces: W10316883) |
|
$ 60.90 | |||||
| 15 | WPW10316885 | Window, Door Compartment (Replaces: W10316885) |
|
$ 67.88 | |||||
| 16 | W11366418 | Set Screw (silver) (Replaces: W10010140) |
|
Immediately | $ 16.59 | ||||
| 17 | W11661847 | Cover, Door Stop (grey) (Replaces: W10257218) |
|
Immediately | $ 28.54 |
