View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Top And Cabinet Parts
03 - Door Parts

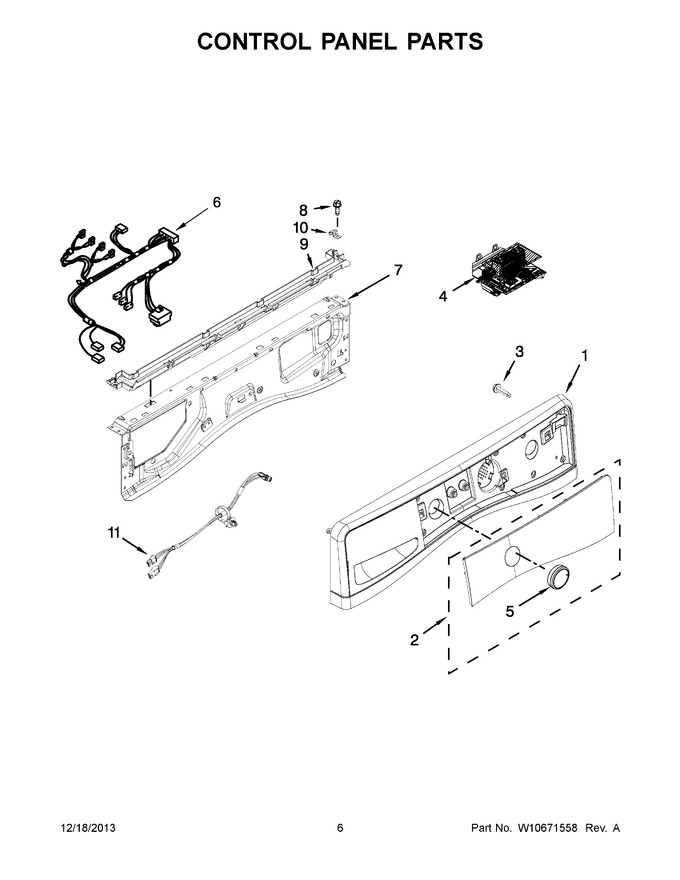

04 - Control Panel Parts
05 - Dispenser Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10586939 | Assembly, Console (white) |
|
$ 238.47 | |||||
| 2 | W10635627 | Assembly, Iml (white) |
|
$ 489.40 | |||||
| 3 | W10589828 | Screw |
|
$ 13.76 | |||||
| 4 | W10635660 | Control Unit, Appliance |
|
$ 243.43 | |||||
| 5 | W10567171 | Assembly, Control Knob (black) |
|
$ 29.22 | |||||
| 6 | W11229597 | Harness, Main (upper) (Replaces: W10632341) |
|
Immediately | $ 153.39 | ||||
| 7 | W10208197 | Bracket, Console |
|
$ 157.09 | |||||
| 8 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 7.54 | ||||
| 9 | WPW10653575 | Channel, Water (Replaces: W10317570) |
|
$ 81.85 | |||||
| 10 | W10317566 | Clip, Spring |
|
$ 8.24 | |||||
| 11 | WPW10442440 | Harness, Ui (Replaces: W10442440) |
|
$ 25.69 |
