SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)

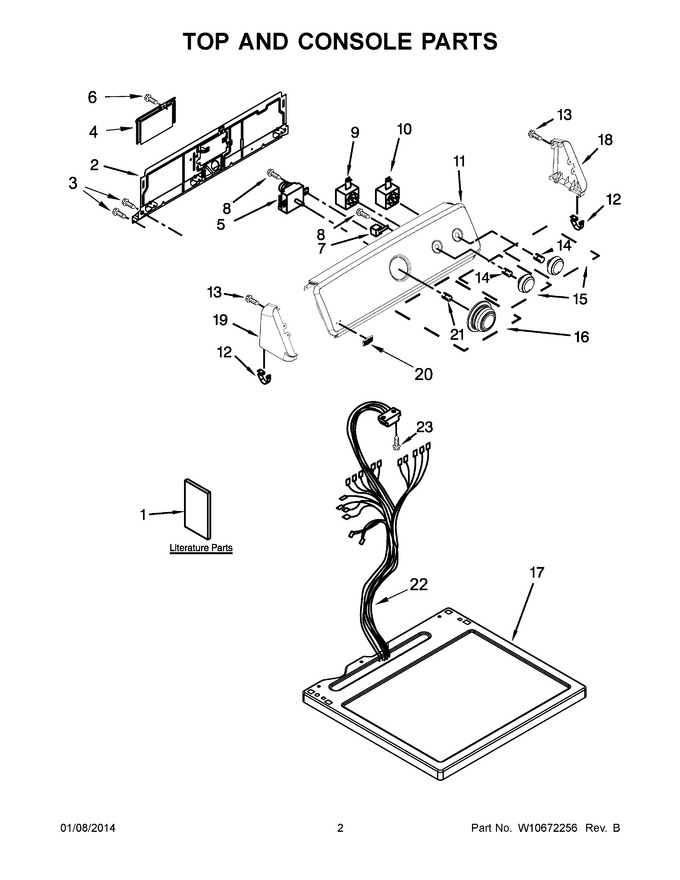

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10629455		Owners Manual		Appelez-nous	-
1	W10629448		Installation Instructions		Appelez-nous	-
1	W10631595		Wiring Diagram		Appelez-nous	-
2	W10121161		Panel, Rear Console		Appelez-nous	-
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
4	W10601020		Cover, Terminal Block		Appelez-nous	-
5	WP3979617		Assembly, Timer (60 Hz.)   (Replaces: 3979617)			Immediately	$ 347.21
6	WP3390631		Screw   (Replaces: 3390631)				$ 7.43
7	3952439		Buzzer, Mini		Appelez-nous	-
8	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.43
9	WP3399639		Switch, Temperature   (Replaces: 3399639)			Immediately	$ 118.04
10	WPW10112668		Switch, Push-to-start   (Replaces: W10112668)				$ 115.30
11	W10598015		Panel & Bracket Assembly		Appelez-nous	-
12	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
13	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
14	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
15	WPW10317455		Assembly, Control Knob (grey)   (Replaces: W10317455)				$ 57.00
16	WPW10317454		Assembly, Timer Knob (grey)   (Replaces: W10317454)				$ 57.12
17	8559781		Top (white)		Appelez-nous	-
18	WPW10193821		End Cap (right) (white)   (Replaces: W10193821)				$ 67.25
19	WPW10193824		End Cap (left) (white)   (Replaces: W10193824)				$ 66.95
20	W10323734		Assembly, Badge				$ 57.56
21	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.38
22	W10599164		Harness, Wiring		Appelez-nous	-
23	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.62

    View Diagram in Separate Window       Print Part List
