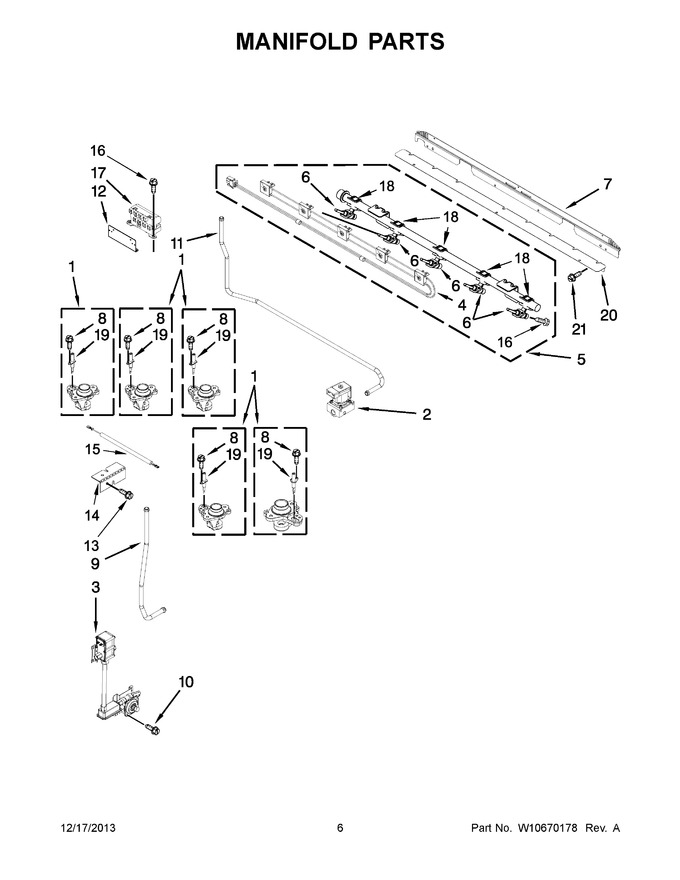

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10273135 | Holder, Orifice (5k) (left Rear) (Replaces: W10273135) |
|
$ 108.19 | |||||
| 1 | WPW10273133 | Holder, Orifice (16k) (left Front) (Replaces: W10273133) |
|
$ 110.61 | |||||
| 1 | WPW10319347 | Holder, Orifice (7k) (center) (Replaces: W10273137) |
|
$ 103.27 | |||||
| 1 | WPW10273139 | Holder, Orifice (5k) (right Rear) (Replaces: W10273139) |
|
$ 106.88 | |||||
| 1 | W10273141 | Holder, Orifice (12k) (right Front) |
|
$ 48.23 | |||||
| 2 | W10911971 | Valve, Shut Off (Replaces: W10368614) |
|
$ 337.94 | |||||
| 3 | W10582429 | Regulator, Pressure |
|
$ 165.27 | |||||
| 4 | WPW10204718 | Harness, Switch (Replaces: W10204718) |
|
$ 198.87 | |||||
| 5 | WPW10204705 | Assembly, Pipe Manifold (Replaces: W10204705) |
|
Immediately | $ 306.07 | ||||
| 6 | WPW10298678 | Valve, Fish (fish Burner) (Replaces: W10298678) |
|
Immediately | $ 202.11 | ||||
| 6 | WPW10206287 | Valve (5k) (left Rear & Right Rear) (Replaces: W10206287) |
|
Immediately | $ 198.53 | ||||
| 6 | WPW10206288 | Valve (16k) (left Front & Right Front) (Replaces: W10206288) |
|
Immediately | $ 118.04 | ||||
| 7 | WPW10276470 | Bracket, Manifold Rear Cover (Replaces: W10343062) |
|
$ 80.40 | |||||
| 8 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.12 | ||||
| 9 | W10524331 | Tubing (supply Regulator To Shutoff) |
|
$ 43.86 | |||||
| 10 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 11 | W10295055 | Tubing (supply Shutoff To Manifold) |
|
$ 186.48 | |||||
| 12 | W10319059 | Bracket, Spark Module |
|
- | |||||
| 13 | W10217535 | Screw |
|
$ 19.73 | |||||
| 14 | W10324366 | Holder, Electrode Extension |
|
- | |||||
| 15 | W10636384 | Extension, Electrode (Replaces: W10322044) |
|
$ 126.05 | |||||
| 16 | W10709795 | Screw (Replaces: 7101P624-60) |
|
$ 12.41 | |||||
| 17 | 74009098 | Module, Spark (Replaces: 7431P053-60) |
|
$ 320.36 | |||||
| 18 | 98017516 | Saddle, Bracket |
|
$ 84.18 | |||||
| 19 | WPW10407676 | Ignitor (electrode, Spark) (Replaces: W10407676) |
|
$ 49.29 | |||||
| 19 | W10407677 | Ignitor (electrode, Fish) |
|
$ 22.05 | |||||
| 20 | WPW10276466 | Bracket, Manifold (bottom) (Replaces: W10276466) |
|
$ 97.37 | |||||
| 21 | WPY706189 | Screw (Replaces: 7101P653-60) |
|
Immediately | $ 6.80 | ||||
| NI | N/P | Following Parts Not .illustrated |
|
- | |||||
| NI | W11674161 | Kit, Lp Conversion (Replaces: W10591270) |
|
$ 104.09 |
