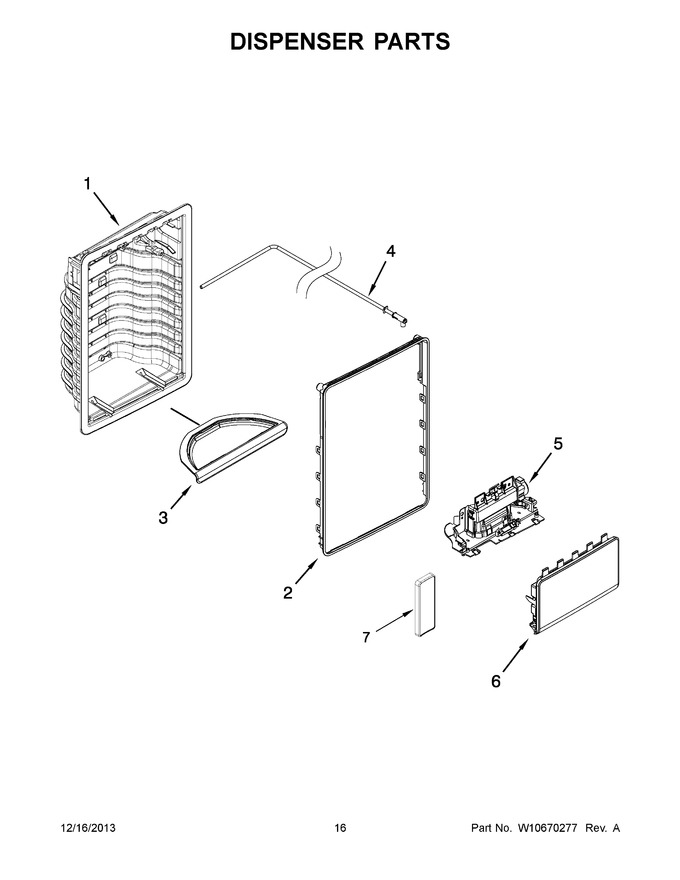

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WPW10402180		Trim Ring (chrome)   (Replaces: W10402180)			Immediately	$ 54.83
3	WPW10606639		Drip Tray (grey)   (Replaces: W10402167)				$ 91.26
4	W11566468		Water Tube With Spigot   (Replaces: W10294737)			Immediately	$ 52.70
5	WPW10291704		Assembly, Separator   (Replaces: W10291704)				$ 173.39
6	WPW10594950		Ui Assembly Control (silver Mirror)   (Replaces: W10594950)				$ 333.86
7	W10853387		Pad Assembly- Water & Ice (tempest Grey)   (Replaces: W10473007)				$ 261.28
