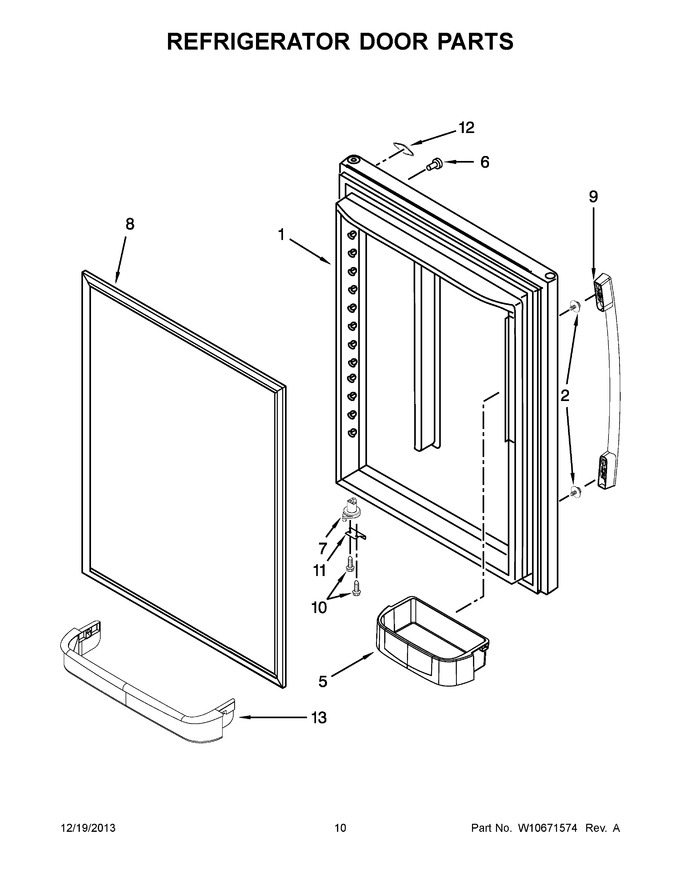

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107554SQ | Door, Refrigerator (stainless) (Replaces: 13107554S) |
|
$ 1,049.66 | |||||
| 1 | 13109401WQ | Door, Refrigerator (white) (Replaces: 13109401W) |
|
$ 966.29 | |||||
| 1 | 13109401BQ | Door, Refrigerator (black) (Replaces: 13109401B) |
|
$ 966.29 | |||||
| 2 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 5 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 69.51 | ||||
| 6 | WP12246608 | Plug-button (black) (Replaces: 12246608) |
|
Immediately | $ 7.34 | ||||
| 6 | WP12246610 | Plug, Button (stainless) (Replaces: 12246610) |
|
Immediately | $ 7.34 | ||||
| 6 | WP67001130 | Plug-button (white) (Replaces: 12246607) |
|
Immediately | $ 7.39 | ||||
| 7 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
Immediately | $ 81.29 | ||||
| 7 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 7.34 | ||||
| 8 | W10443314 | Gasket, Door (grey) (Replaces: W10571963) |
|
Immediately | $ 314.16 | ||||
| 8 | WPW10436248 | Gasket, Door (black) (Replaces: W10436248) |
|
$ 316.71 | |||||
| 8 | W10443313 | Gasket, Door (white) (Replaces: W10571964) |
|
$ 324.91 | |||||
| 9 | W10830130 | Handle, Door (black) (Replaces: W10589563) |
|
Immediately | $ 170.59 | ||||
| 9 | W11459378 | Handle, Door (stainless) (Replaces: W10572632N) |
|
Immediately | $ 169.88 | ||||
| 9 | W10830136 | Handle, Door (white) (Replaces: W10589564) |
|
$ 176.55 | |||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 11 | W11401472 | Stop, Door (grey) (Replaces: 10447114) |
|
Immediately | $ 21.20 | ||||
| 11 | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
Immediately | $ 13.28 | ||||
| 11 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 62.36 | |||||
| 12 | WPW10393265 | Nameplate (grey) (Replaces: W10393265) |
|
Immediately | $ 70.71 | ||||
| 12 | WPW10391355 | Nameplate (white) (Replaces: W10391355) |
|
$ 68.09 | |||||
| 13 | 67001019 | Retainer, Door (Replaces: 12557905) |
|
Immediately | $ 101.61 |
