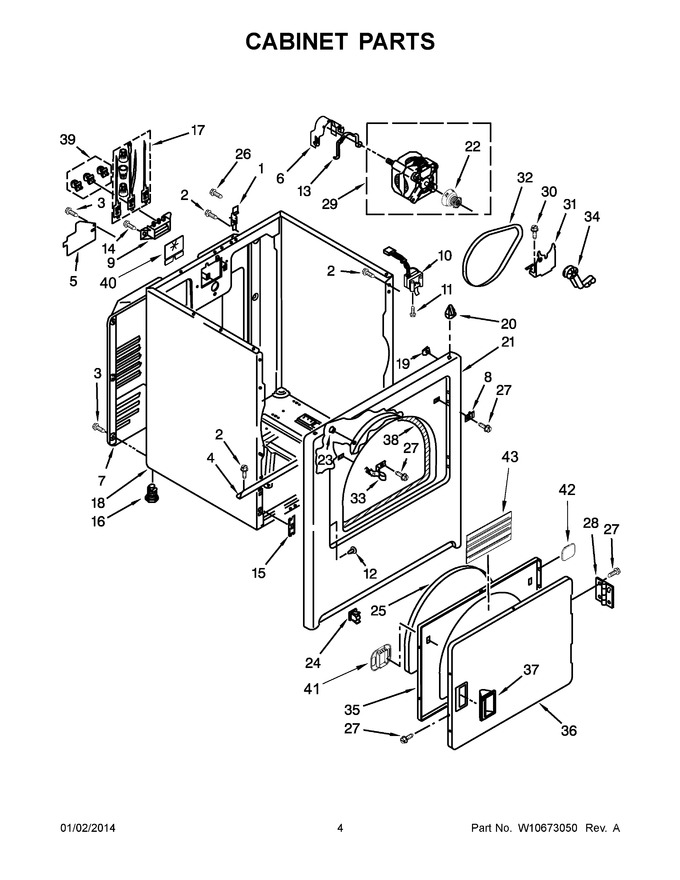

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8066217 | Hinge, Top (Replaces: 8066217) |
|
$ 7.39 | |||||
| 2 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.43 | |||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 4 | W10236073 | Bracket, Cabinet |
|
- | |||||
| 5 | W11298298 | Cover, Terminal Block (Replaces: W10571619) |
|
$ 84.52 | |||||
| 6 | WP3404162 | Clamp, Motor (with Shield) (Replaces: 3404162) |
|
Immediately | $ 7.39 | ||||
| 7 | 280043 | Panel, Rear (Replaces: W10571724) |
|
$ 322.53 | |||||
| 8 | W11684591 | Plug, Strike (Replaces: W10567345) |
|
Immediately | $ 7.32 | ||||
| 9 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 21.75 | |||||
| 10 | WP3406107 | Switch, Door (Replaces: W10569603) |
|
Immediately | $ 28.08 | ||||
| 11 | WP3395530 | Screw (Replaces: 697773) |
|
$ 7.71 | |||||
| 12 | WP3404413 | Plug, Hole (Replaces: 3404413) |
|
Immediately | $ 7.52 | ||||
| 13 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 24.26 | ||||
| 14 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 15 | W10854425 | Clip, Front Panel (Replaces: 3394083) |
|
Immediately | $ 14.71 | ||||
| 16 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 17 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 95.44 | ||||
| 18 | 8533643 | Cabinet (white) (Replaces: 8530603) |
|
$ 377.30 | |||||
| 19 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 10.76 | ||||
| 20 | WP8066092 | Lock, Front Top (Replaces: 8066092) |
|
Immediately | $ 18.43 | ||||
| 21 | W10806345 | Panel, Front (white) (Replaces: W10224853) |
|
$ 219.94 | |||||
| 22 | WP8066184 | Pulley, 60 Hz. (Replaces: W10402909) |
|
Immediately | $ 45.92 | ||||
| 23 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 21.20 | |||||
| 24 | W11429587 | Assembly, Door Catch (Replaces: W10610880) |
|
Immediately | $ 23.90 | ||||
| 25 | W10861521 | Seal, Door (Replaces: W10389572) |
|
Immediately | $ 61.07 | ||||
| 26 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 27 | WP488627 | Screw (Replaces: 342055) |
|
$ 7.30 | |||||
| 28 | WPW10362431 | Assembly, Hinge And Pin (Replaces: W10362431) |
|
Immediately | $ 7.45 | ||||
| 29 | 279827 | Assembly, Motor (Replaces: W10366770) |
|
Immediately | $ 195.48 | ||||
| 30 | 3400500 | Bolt |
|
Immediately | $ 12.64 | ||||
| 31 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 114.89 | ||||
| 32 | 341241 | Belt, Drive (Replaces: W10131364) |
|
Immediately | $ 16.34 | ||||
| 33 | W11429589 | Strike, Door (Replaces: 3403431) |
|
Immediately | $ 18.89 | ||||
| 34 | WP691366 | Idler Assembly (Replaces: 691366) |
|
Immediately | $ 20.22 | ||||
| 35 | WPW10463967 | Door, Inner (Replaces: W10463967) |
|
$ 207.63 | |||||
| 36 | W10861227 | Door, Front (white) (Replaces: 3402335) |
|
$ 242.33 | |||||
| 37 | W10909035 | Handle, Door (white) (Replaces: W10549552) |
|
$ 76.12 | |||||
| 38 | W11035878 | Assembly, Seal And Bearing (Replaces: W10568603) |
|
Immediately | $ 83.41 | ||||
| 39 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 50.09 | ||||
| 40 | W11627518 | Pad, Power Cord (Replaces: W10574733) |
|
$ 20.28 | |||||
| 41 | WPW10529197 | Bezel, Door Catch (Replaces: W10529197) |
|
Immediately | $ 22.91 | ||||
| 42 | W11173656 | Cover, Door Catch (Replaces: W10529198) |
|
$ 7.38 | |||||
| 43 | W10636378 | Pad, Door Handle |
|
$ 62.75 | |||||
| NI | 49621 | Foot, Optional Extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 7.70 |
