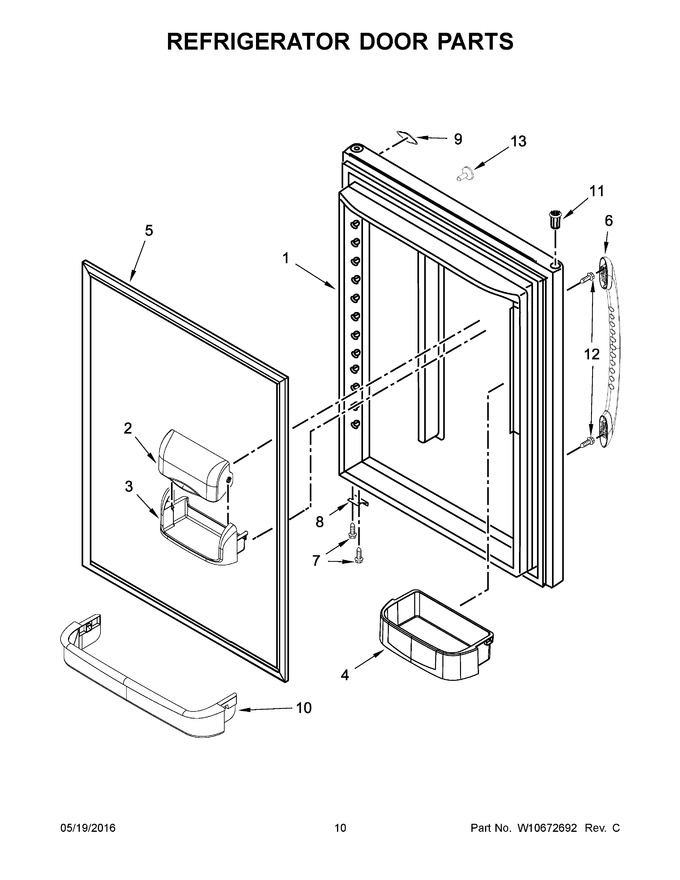

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13109402WQ | Door, Refrigerator (white) (Replaces: 13109402W) |
|
$ 990.75 | |||||
| 2 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 74.40 | ||||
| 3 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 79.21 | ||||
| 4 | WP67001021 | Bucket, Medium (Replaces: 12557204) |
|
$ 76.46 | |||||
| 5 | WPW10443309 | Gasket, Door (white) (Replaces: W10443309) |
|
Immediately | $ 328.72 | ||||
| 6 | W10830136 | Handle, Door (white) (Replaces: W10686459) |
|
$ 176.55 | |||||
| 7 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 8 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 62.36 | |||||
| 9 | WPW10391355 | Nameplate (white) (Replaces: W10391355) |
|
$ 68.09 | |||||
| 10 | 67001139 | Retainer, Door (Replaces: 12557904) |
|
Immediately | $ 94.31 | ||||
| 11 | WP67004977 | Bushing (white) (Replaces: 10961006W) |
|
$ 7.38 | |||||
| 12 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 13 | WP67001130 | Plug, Button (white) (Replaces: 12246607) |
|
Immediately | $ 7.39 | ||||
| 11A | 67004978 | Bushing (black) (Replaces: 10961006B) |
|
$ 19.89 | |||||
| 11B | 10961006AP | Bushing (grey) |
|
$ 8.69 | |||||
| 13A | WP12246608 | Plug, Button (black) (Replaces: 12246608) |
|
Immediately | $ 7.34 | ||||
| 13B | WP12246610 | Plug, Button (grey) (Replaces: W10670785) |
|
Immediately | $ 7.34 | ||||
| 1A | 13109402BQ | Door, Refrigerator (black) (Replaces: 13109402B) |
|
$ 838.18 | |||||
| 1B | 13107553SQ | Door, Refrigerator (stainless) (Replaces: 13107553S) |
|
$ 1,180.63 | |||||
| 4A | 67001141 | Bucket, Small (Replaces: 12557202) |
|
Immediately | $ 71.02 | ||||
| 5A | WPW10436245 | Gasket, Door (black) (Replaces: W10436245) |
|
$ 326.12 | |||||
| 5B | W11676571 | Gasket, Door (grey) (Replaces: W10443310) |
|
$ 205.07 | |||||
| 6A | W10830130 | Handle, Door (black) (Replaces: W10686442) |
|
Immediately | $ 170.59 | ||||
| 6B | W11459378 | Handle, Door (stainless) (Replaces: W10686482) |
|
Immediately | $ 165.50 | ||||
| 8A | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
Immediately | $ 13.28 | ||||
| 8B | W11401472 | Stop, Door (grey) (Replaces: 10447114) |
|
Immediately | $ 21.20 | ||||
| 9A | WPW10393265 | Nameplate (grey) (Replaces: W10393265) |
|
Immediately | $ 70.71 |
