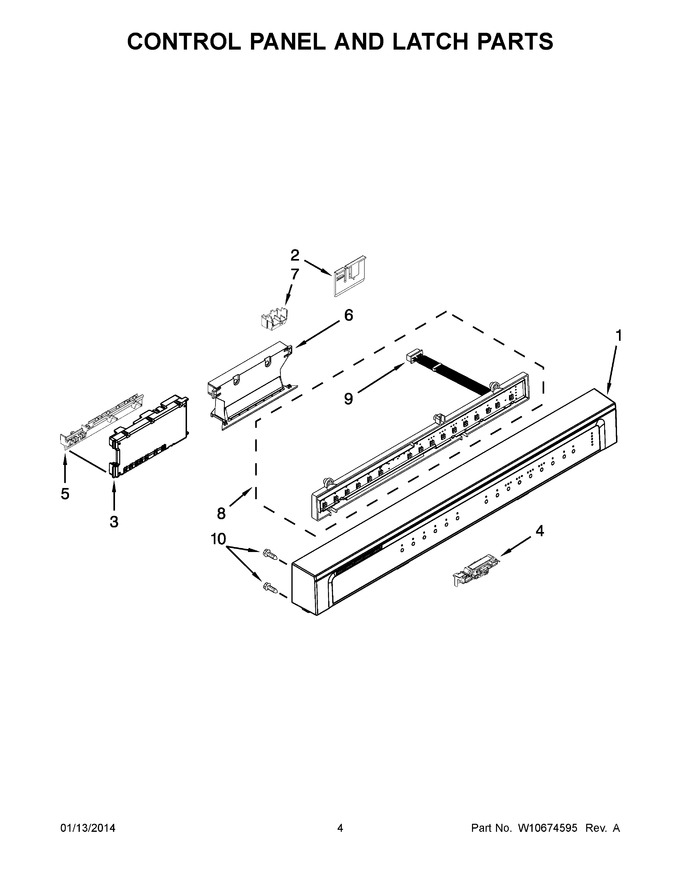

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10508924 | Console Assembly (includes Active Overlay & Insert) (black) (Replaces: W10508915) |
|
$ 280.56 | |||||
| 2 | W11256107 | Clip. Control (Replaces: W10195237) |
|
$ 20.94 | |||||
| 3 | W10597042 | Control, Electronic (Replaces: W10539781) |
|
$ 176.63 | |||||
| 4 | WPW10653840 | Latch Assembly (includes Switch) (Replaces: W10574864) |
|
Immediately | $ 30.76 | ||||
| 5 | WPW10194937 | Brace, Connector (Replaces: W10194937) |
|
$ 27.50 | |||||
| 6 | WPW10321839 | Handle (black) (Replaces: W10321839) |
|
Immediately | $ 134.12 | ||||
| 7 | W10783730 | Box, Connector (Replaces: W10401190) |
|
$ 28.27 | |||||
| 8 | W10508943 | Housing Assembly, User Interface |
|
$ 237.78 | |||||
| 9 | W10327246 | Wire, Jumper |
|
$ 60.31 | |||||
| 10 | WPW10348408 | Screw (Replaces: W10348408) |
|
Immediately | $ 6.80 |
