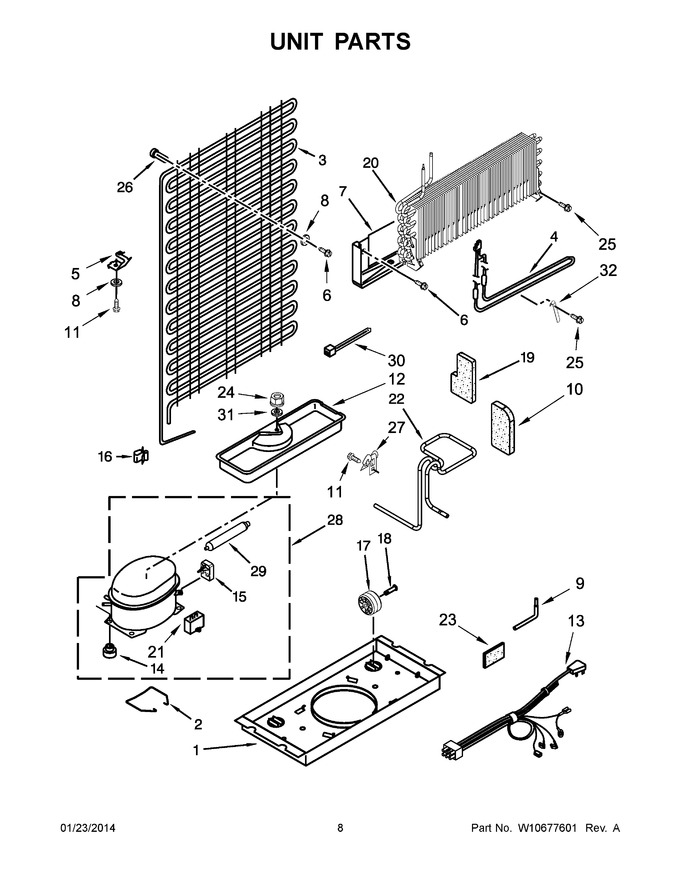

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10222451 | Plate, Compressor Support |
|
$ 32.07 | |||||
| 2 | 2212996 | Strap, Bale |
|
$ 11.45 | |||||
| 3 | WPW10219349 | Condenser (Replaces: W10219349) |
|
$ 261.63 | |||||
| 4 | WP2263749 | Heater, Defrost (Replaces: 2176942) |
|
Immediately | $ 84.33 | ||||
| 5 | 4386951 | Clip, Condenser (Replaces: 2172892) |
|
- | |||||
| 6 | 8533892 | Screw |
|
- | |||||
| 7 | 2319224 | Shield, Heat |
|
$ 116.21 | |||||
| 8 | 8526417 | Washer (Replaces: VS611) |
|
$ 13.18 | |||||
| 9 | W11676464 | Tube, Process (Replaces: VS20001) |
|
$ 97.75 | |||||
| 10 | 2262192 | Wedge, Evaporator |
|
- | |||||
| 11 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 12 | 2201801 | Tray, Evaporator |
|
$ 78.52 | |||||
| 13 | W10151654 | Assembly, Unit Wire |
|
$ 277.52 | |||||
| 14 | WPW10169124 | Grommet (Replaces: 2264447) |
|
$ 6.80 | |||||
| 15 | W10805623 | Start Device, Combination (start Relay And Overload) (Replaces: W10330836) |
|
$ 119.66 | |||||
| 16 | W10812038 | Clip, Wire (compressor) (Replaces: 939054) |
|
- | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 28.85 | ||||
| 18 | WP2264756 | Axle, Roller (Replaces: 2264756) |
|
$ 6.80 | |||||
| 19 | 2262191 | Wedge, Evaporator |
|
- | |||||
| 20 | WP2263920 | Evaporator (Replaces: 2263920) |
|
Immediately | $ 299.90 | ||||
| 21 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 52.97 | ||||
| 22 | W10289688 | Tube, Discharge |
|
- | |||||
| 23 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 13.29 | ||||
| 24 | 285002 | Nut, Hex (Replaces: 489153) |
|
$ 11.57 | |||||
| 25 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 26 | 2258452 | Spacer, Condenser |
|
- | |||||
| 27 | 549193 | Clamp, Power Cord |
|
$ 12.65 | |||||
| 28 | W10285060 | Compressor (Replaces: W10252075) |
|
$ 664.70 | |||||
| 29 | W10843121 | Drier (Replaces: W10190413) |
|
Immediately | $ 51.42 | ||||
| 30 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.47 | |||||
| 31 | WP487802 | Washer (Replaces: 487802) |
|
Immediately | $ 7.32 | ||||
| 32 | W11807361 | Heat Probe (Replaces: 2258429) |
|
$ 18.11 | |||||
| NI | WP978025 | Valve, Access (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 121.04 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 16.79 | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access |
|
$ 123.53 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 86.33 | ||||
| NI | N/P | Refrigerant Charge 3.75 Oz. (r-134) |
|
- |
