01 - Cover Sheet

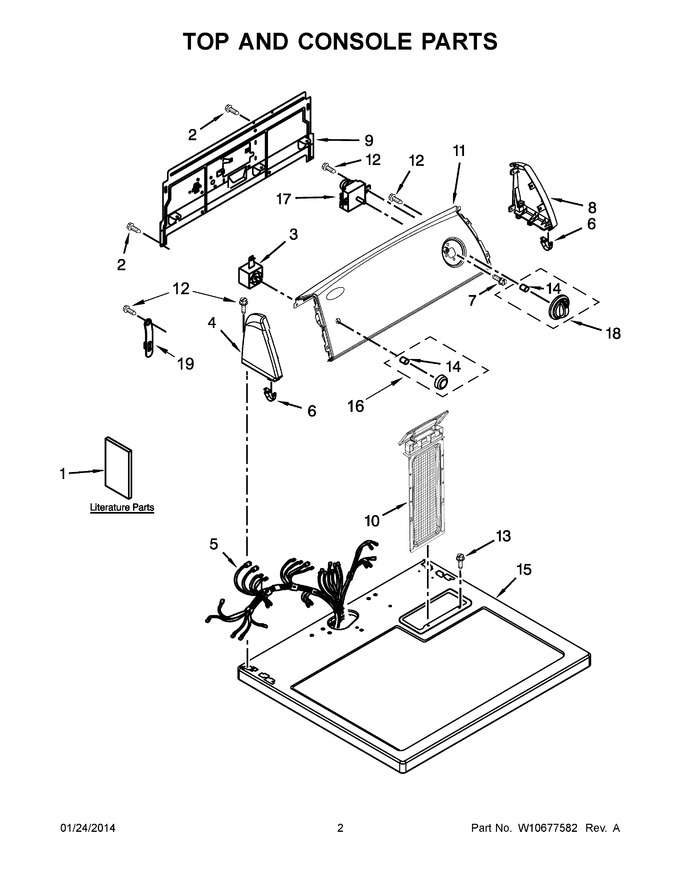

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10629448		Installation Instructions		Appelez-nous	-
1	W10629452		Owners Manual		Appelez-nous	-
1	W10631594		Wiring Diagram		Appelez-nous	-
2	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
3	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 23.99
4	WP8565957		End Cap (left) (white)   (Replaces: 8566035)				$ 58.28
5	W10599161		Harness, Wiring		Appelez-nous	-
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
7	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
8	WP8565954		End Cap (right) (white)   (Replaces: 8566032)				$ 59.26
9	W10121161		Panel, Rear Console		Appelez-nous	-
10	W10120998		Screen, Lint   (Replaces: W10596627)				$ 74.66
11	W10598016		Assembly, Panel		Appelez-nous	-
12	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.43
13	WP3400818		Screw   (Replaces: 3400818)				$ 7.93
14	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
15	8559781		Top (white)		Appelez-nous	-
16	W10034770		Assembly, Push To Start Knob (white/metallic)		Appelez-nous	-
17	WP8299781		Assembly, Timer (60 Hz.)   (Replaces: 8299781)			Immediately	$ 342.50
18	W10034750		Assembly, Timer Knob (white/metallic)				$ 28.27
19	WP8568314		Strap, Console   (Replaces: 8568314)				$ 7.35
