1 - Door Parts

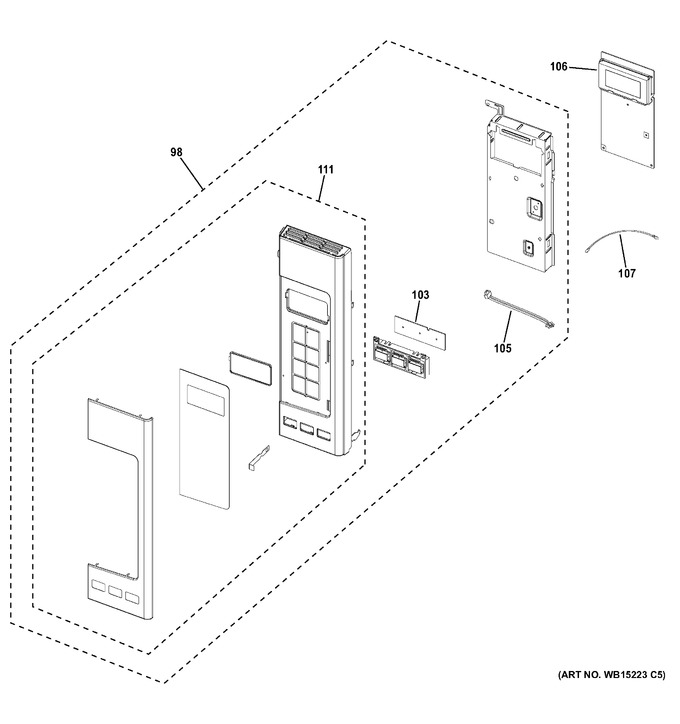

2 - Control Parts
3 - Oven Cavity Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 98 | WB56X20763 | Control Panel, Asm |
|
- | |||||
| 103 | WB24X20620 | Switch Pcb, Asm |
|
- | |||||
| 105 | WB18X20627 | Wire Harness, Asm |
|
- | |||||
| 106 | WB56X20629 | Pcb Main, Asm |
|
- | |||||
| 107 | WB18X10122 | Wire Gnd Pcb |
|
- | |||||
| 111 | WB56X20764 | Control Panel Sub, Asm |
|
- |
