SELECT A DIAGRAM

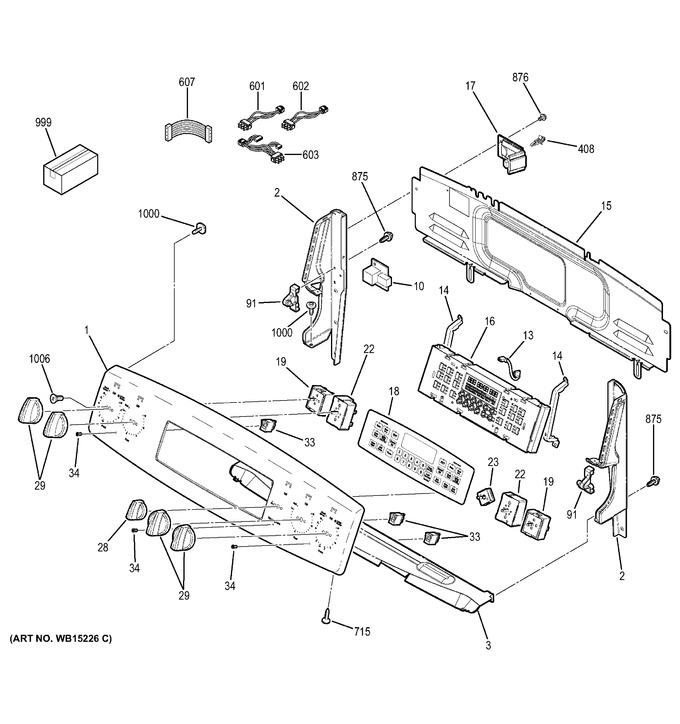

1 - Control Panel
2 - Cooktop
3 - Upper Oven
4 - Lower Oven
5 - Upper Door
6 - Lower Door
7 - Door Lock
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB36X20024 | Trim Cntrl Asm |
|
- | |||||
| 1 | 229C6305P001 | Label Wire Diagram |
|
- | |||||
| 2 | WB07X20043 | Plate End Rt (gy) |
|
- | |||||
| 2 | WB07X20042 | Plate End Lt (gy) |
|
- | |||||
| 3 | WB02X20711 | Shield Heat Bkgd |
|
- | |||||
| 10 | WB27T11453 | Board Rj45 Connector |
|
- | |||||
| 13 | WB18T10506 | Jumper |
|
- | |||||
| 14 | WB34X20004 | Bracket Control Rt |
|
- | |||||
| 14 | WB34X20003 | Bracket Control Lt |
|
- | |||||
| 15 | WB34X20932 | Cover Control |
|
- | |||||
| 16 | WB27T11491 | Control Board (t012-tac) |
|
- | |||||
| 17 | WB27X20933 | Housing Rj45 Asm |
|
- | |||||
| 18 | WB27X20023 | Faceplate Graphics (dg) |
|
- | |||||
| 19 | WB24T10153 | Switch Infinite Control |
|
- | |||||
| 22 | WG02F00292 | Control Infinite Switch (Replaces: WB24T10029) |
|
Immediately | $ 60.36 | ||||
| 23 | WB24T10181 | Switch Rotary |
|
- | |||||
| 28 | WS01L12267 | Knob Asm (Replaces: WB03T10336) |
|
$ 55.83 | |||||
| 29 | WS01L12266 | Knob Asm (Replaces: WB03T10337) |
|
Immediately | $ 63.90 | ||||
| 34 | WB25T10103 | Lens |
|
- | |||||
| 91 | WB10T10116 | Pin Rangetop Hinge |
|
- | |||||
| 408 | WB02T10477 | Pcb Standoff |
|
- | |||||
| 601 | WB18X20001 | Harness Wire Infinite |
|
- | |||||
| 602 | WB18T10497 | Harness Wire Infinite |
|
- | |||||
| 603 | WB18X21396 | Harness Wire Ui Com |
|
- | |||||
| 607 | WB18X20006 | Harness Wire Cat Module |
|
- | |||||
| 715 | WD2X432 | Screw 8-18 X 5/16 Bk |
|
- | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 876 | WB1X500D | Screw-pkg 12 |
|
- | |||||
| 999 | 31-10781 | Pm Install Instructions |
|
- | |||||
| 999 | 31-10816 | Pm Instructions Install |
|
- | |||||
| 999 | 49-80597 | Manual U&c Tip Sheet |
|
- | |||||
| 999 | WB64X93 | Glass Cleaner |
|
- | |||||
| 999 | 31-17048 | Pm Manual Mini & Wd Asm |
|
- | |||||
| 999 | 31-10661 | Instruction Install |
|
- | |||||
| 999 | 49-80633 | Pm Owners Manual |
|
- | |||||
| 1000 | WB1X500 | Scr 8-18 B Hxw 1/4 S |
|
- | |||||
| 1006 | WS01A01257 | Screw 8-32 Tpt Flr 215 S (Replaces: WB01T10020) |
|
$ 3.57 |
