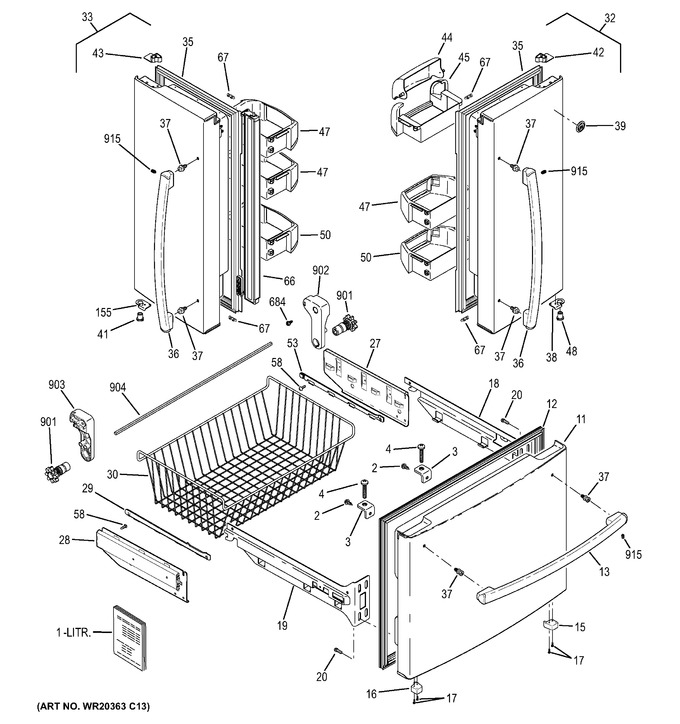

SELECT A DIAGRAM

1 - Doors


2 - Freezer Section


3 - Freezer Shelves


4 - Fresh Food Section


5 - Fresh Food Shelves


6 - Case Parts


7 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-60603		Guide Owner		Appelez-nous	-
1	31-51781		Pm Mini Wiring Manual		Appelez-nous	-
2	WR01X10602		Scr 8-32 Ab Ihws 3/8 S		Appelez-nous	-
3	WR02X12870		Bracket Support		Appelez-nous	-
4	WR01X10843		Scr 1/4 - 20 Unc -2a		Appelez-nous	-
11	WR78X12514		Door Foam Fz Asm		Appelez-nous	-
12	WR14X10349		Gasket		Appelez-nous	-
13	WR12X20318		Arc Handle Asm Fz		Appelez-nous	-
15	WR02X12361		Cam Closure Fz Rh		Appelez-nous	-
16	WR02X12362		Cam Closure Fz Lh		Appelez-nous	-
17	WR01X10582		Scr 10-16		Appelez-nous	-
18	WR72X10299		Bracket Lower		Appelez-nous	-
19	WR72X10300		Bracket Lower		Appelez-nous	-
20	WR01A00633		Scr 1/4-20 Rt Flat 3/4 S   (Replaces: WR01X10885)				$ 3.57
27	WR01A01809		Slide Holder Asm   (Replaces: WR72X10297)			Immediately	$ 186.94
28	WR01A01809		Slide Holder Asm   (Replaces: WR72X10298)			Immediately	$ 186.94
29	WR02X12898		Holder Basket		Appelez-nous	-
30	WR01L00154		Basket Lower   (Replaces: WR21X10179)				$ 1,190.98
32	WR78X12268		Door Foam Ff French Asm		Appelez-nous	-
33	WR78X12270		Door Foam Ff French Asm		Appelez-nous	-
35	WR01L08729		Gasket French   (Replaces: WR14X10279)			Immediately	$ 30.02
36	WR12X20316		Arc Handle Asm Ff		Appelez-nous	-
37	WR01A01801		Fastener Door Handle   (Replaces: WR01X11007)			Immediately	$ 11.44
38	WR02X12899		Stop Door		Appelez-nous	-
39	WR01A01450		Badge Ge   (Replaces: WR04X10223)				$ 12.86
41	WR02X12903		Thimble Door Plastic		Appelez-nous	-
42	WR02X12359		Cam Ff Closure Rh		Appelez-nous	-
43	WR01L00494		Cam Ff Closure Lh   (Replaces: WR02X12360)				$ 18.59
44	WR22X10063		Door Dairy		Appelez-nous	-
45	WR22X10073		Dairy Bin		Appelez-nous	-
47	WR01L08751		Shelf Module   (Replaces: WR71X20333)				$ 46.18
48	WR01A00988		Thimble Door Ff   (Replaces: WR02X12363)				$ 15.54
50	WR32X20428		Shelf Module		Appelez-nous	-
53	WR01L02537		Holder Basket   (Replaces: WR02X12897)				$ 14.29
58	WR01A00683		Scr 8-18 Ab Ihxw 9/16 S   (Replaces: WR01X10588)				$ 3.57
66	WR01A00388		Mullion Articulation Asm   (Replaces: WR17X12584)			Immediately	$ 164.54
67	WR02X12469		Bumper French Door		Appelez-nous	-
155	WR02X12900		Stop Door		Appelez-nous	-
684	WR01X10252		Screw 10-32 Tt Hxw 5/16		Appelez-nous	-
901	WR01L04645		Wheel Sprocket   (Replaces: WR02X12904)				$ 8.93
902	WR01A00011		Arm Wheel Sprocket   (Replaces: WR02X12905)				$ 15.72
903	WR01A00012		Arm Wheel Sprocket   (Replaces: WR02X12906)				$ 9.20
904	WR02X12907		Axle Wheel Sprocket		Appelez-nous	-
915	WR01X20424		Set Screw		Appelez-nous	-
