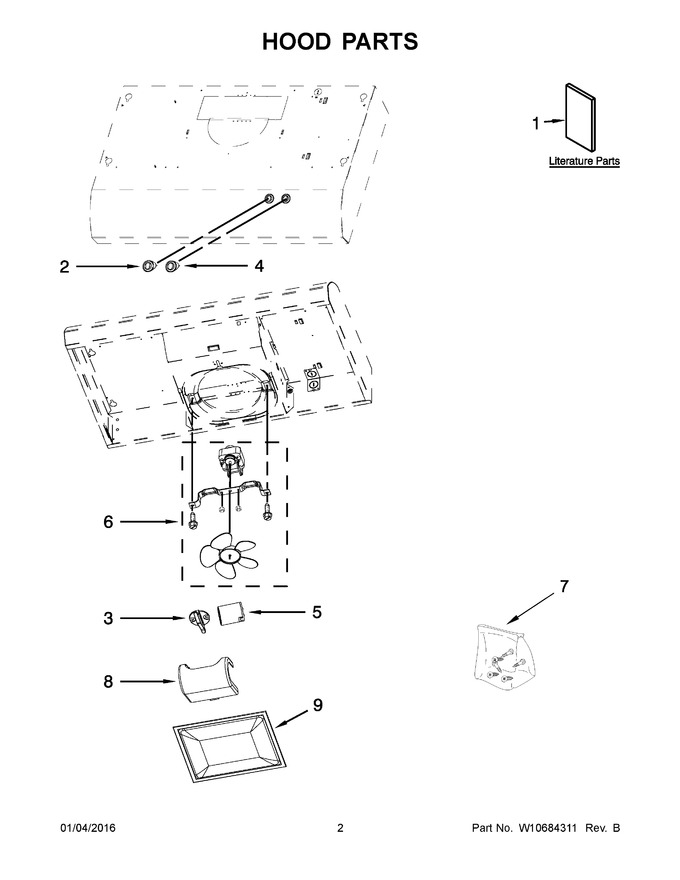

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10646402 | Use And Care Guide |
|
- | |||||
| 2 | W10394523 | Switch, Light (white) |
|
- | |||||
| 3 | W10386347 | Latch, Filter |
|
$ 13.28 | |||||
| 4 | W10394557 | Switch, Fan (white) |
|
$ 74.80 | |||||
| 5 | W10910124 | Socket, Bulb (Replaces: W10386341) |
|
$ 75.21 | |||||
| 6 | W10910693 | Motor/fan Assembly (Replaces: W10372598) |
|
$ 173.75 | |||||
| 7 | W10665195 | Hardware, Installation |
|
$ 148.64 | |||||
| 8 | W10386342 | Cover, Lamp |
|
$ 31.42 | |||||
| 9 | W10394517 | Filter, Grease |
|
$ 29.16 | |||||
| 2A | W10394520 | Switch, Light (black) |
|
$ 78.98 | |||||
| 2B | W10372593 | Switch, Light (biscuit) |
|
- | |||||
| 4A | W11740801 | Switch, Fan (black) (Replaces: W10394521) |
|
$ 22.47 | |||||
| 4B | W10372597 | Switch, Fan (biscuit) |
|
- | |||||
| NI | W10613691 | Accessories, Power Cord Kit (Replaces: W10355452) |
|
$ 52.92 | |||||
| NI | 31462A | Accessories, Cleaner, Stainless Steel |
|
- |
