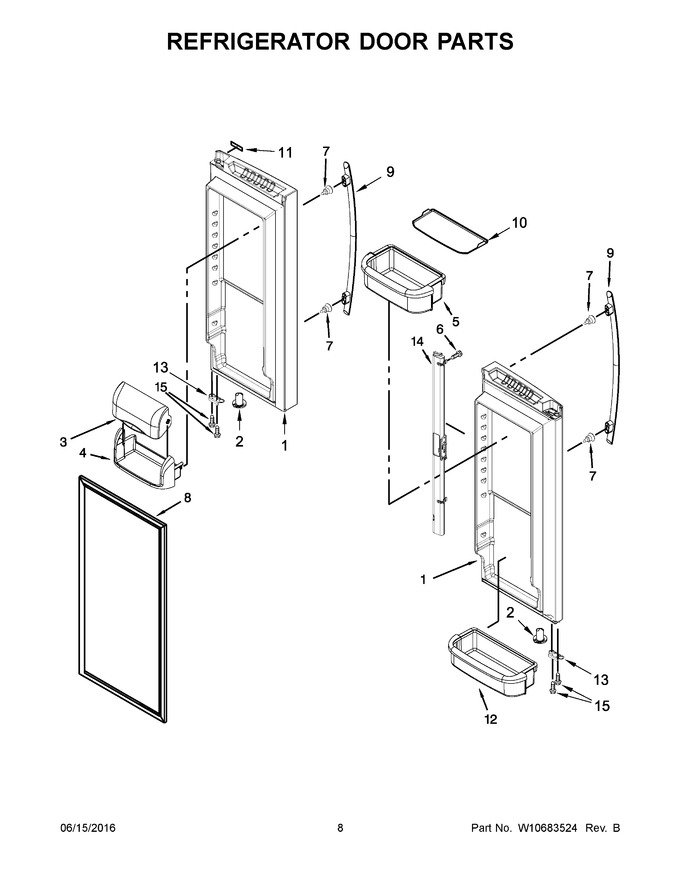

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107881SQ | Door, Refrigerator Left Hand (stainless) (Replaces: 13107881S) |
|
$ 1,087.96 | |||||
| 2 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 55.31 | ||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 74.40 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 79.21 | ||||
| 5 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 69.51 | ||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 7 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 8 | W10830162 | Gasket, Door (grey) |
|
Immediately | $ 223.74 | ||||
| 9 | WPW10298179 | Handle, Door (stainless (jfc2089bem00)) (Replaces: W10298179) |
|
$ 287.72 | |||||
| 10 | W11402028 | Gripper, Gallon (Replaces: W10449760) |
|
Immediately | $ 80.77 | ||||
| 11 | WPW10214168 | Nameplate (stainless (jfc2089bem00)) (Replaces: W10214168) |
|
$ 77.36 | |||||
| 12 | WPW10289497 | Bucket, Gallon (Replaces: W10289497) |
|
Immediately | $ 72.98 | ||||
| 13 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 13.91 | |||||
| 14 | WP12722803AP | Mullion, Door (grey) (Replaces: 12722803APN) |
|
Immediately | $ 170.11 | ||||
| 15 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 10A | WPW10450021 | Gripper, Medium (Replaces: W10450021) |
|
Immediately | $ 90.84 | ||||
| 11A | W11636815 | Nameplate (stainless (jfc2089bep00)) (Replaces: 13062401) |
|
$ 40.82 | |||||
| 1A | 13107855SQ | Door, Refrigerator Right Hand (stainless) (Replaces: 13107855S) |
|
$ 1,029.48 | |||||
| 9A | W10605387 | Handle, Door (pro Style (jfc2089bep00)) |
|
- |
